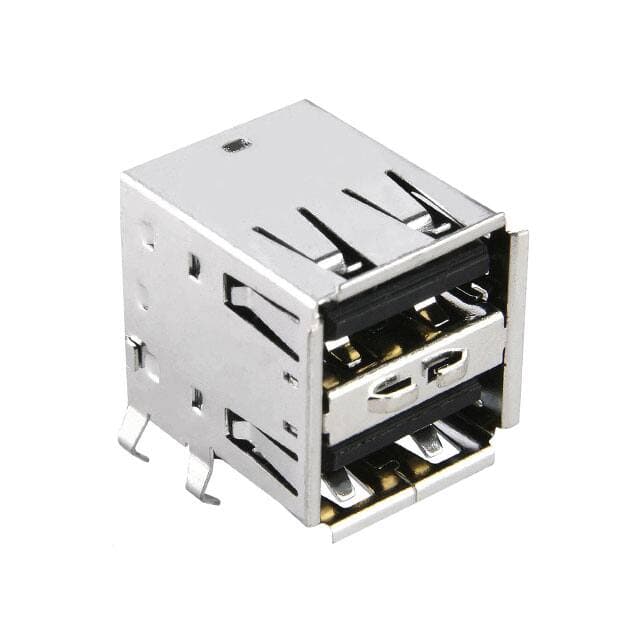

Harwin M701-230842

Manufacturer No:

M701-230842

Manufacturer:

Harwin

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M701-230842 information

Harwin M701-230842 technical specifications, attributes, parameters and parts with similar specifications to Harwin M701-230842.

Type
Parameter

Contact Material
Bronze

Mount
Horizontal, Through Hole

Mounting Type
Through Hole, Right Angle

Mounting Feature
Horizontal

Insulation Material
POLYBUTYLENE TEREPHTHALATE

Shell/Shielding Material
Brass

Operating Temperature
-55°C~85°C

Packaging
Bulk

Published
2006

JESD-609 Code
e3

Feature
Board Lock

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
USB-A (USB TYPE-A), Stacked

Color
Black

Gender
Receptacle

Voltage - Rated
30VAC/DC

Subcategory
Telecom and Datacom Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Shielding
Unshielded

Reach Compliance Code
not_compliant

Current Rating
1.5A

Insulation Color
White

Shell Finish
NICKEL

Number of Conductors
TWO

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Body Length or Diameter
0.594 inch

Number Of PCB Rows
2

Number of Contacts
8

PCB Contact Pattern
RECTANGULAR

Mating Information
NO

Body Breadth
0.634 inch

Empty Shell
NO

Body Depth
0.669 inch

Contact Style
USB, SER B SQ

Contact Resistance
50mOhm

Insulation Resistance
1GOhm

Body/Shell Style
PLUG
