Harwin M50-3900242

Manufacturer No:

M50-3900242

Manufacturer:

Package:

Description:

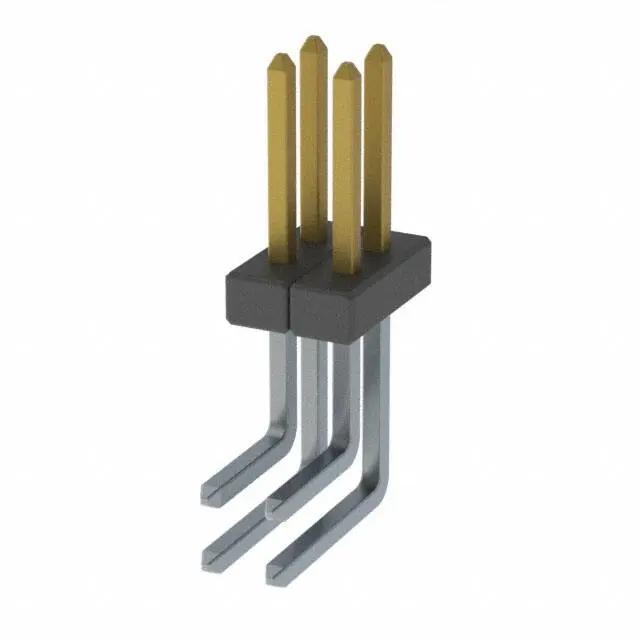

Archer M50 Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Thermoplastic 4-Position Board to Board or Cable 0.039 1.00mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M50-3900242 information

Harwin M50-3900242 technical specifications, attributes, parameters and parts with similar specifications to Harwin M50-3900242.

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Contact Shape
Square

Insulation Material
Thermoplastic

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
Archer M50

Published
2013

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
4

Number of Rows
2

Voltage - Rated
600V

Additional Feature
ROHS COMPLIANT

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
1A per Contact

Insulation Height
0.039 1.00mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Current Rating
1A

Pitch - Mating
0.050 1.27mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Body Length or Diameter
0.1 inch

Row Spacing - Mating
0.050 (1.27mm)

Contact Length - Post
0.079 2.00mm

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Finish - Post
Tin

Contact Length - Mating
0.150 3.81mm

PCB Contact Pattern
RECTANGULAR

Body Depth
0.188 inch

Download datasheets and manufacturer documentation for Harwin M50-3900242.

Datasheets:

harwininc-m502000005-datasheets-0372.pdf

harwininc-m503900542-datasheets-5100.pdf

M50-3900242 Overview

It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the Archer M50 Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.

M50-3900242 Features

Archer M50 series

M50-3900242 Applications

There are a lot of Harwin Inc.
M50-3900242 Rectangular Connectors applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
