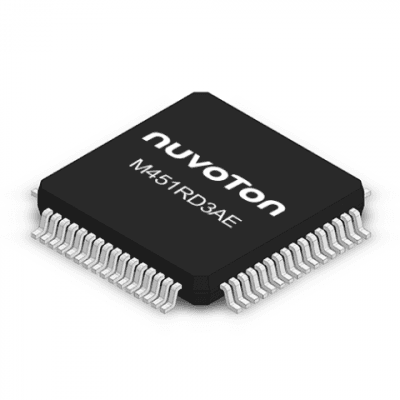

NUVOTON M451RD3AE

Manufacturer No:

M451RD3AE

Manufacturer:

NUVOTON

Package:

Description:

Cortex M4 Microcontroller 72MHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M451RD3AE information

NUVOTON M451RD3AE technical specifications, attributes, parameters and parts with similar specifications to NUVOTON M451RD3AE.

Type
Parameter

Surface Mount
YES

Number of Terminals
64

Package Description
LFQFP, QFP64,.47SQ,20

Package Style
FLATPACK, LOW PROFILE, FINE PITCH

Package Body Material
PLASTIC/EPOXY

Package Equivalence Code
QFP64,.47SQ,20

Operating Temperature-Min
-40 °C

Supply Voltage-Nom
2.7 V

Reflow Temperature-Max (s)
NOT SPECIFIED

Supply Voltage-Min
2.5 V

Operating Temperature-Max
105 °C

RoHS Status
RoHS Compliant

Manufacturer Part Number
M451RD3AE

RAM(byte)
16384

Clock Frequency-Max
24 MHz

Package Code
LFQFP

Package Shape
SQUARE

Manufacturer
Nuvoton Technology Corp

ROM(word)
73728

Part Life Cycle Code
Active

Number of I/O Lines
53

Ihs Manufacturer
NUVOTON TECHNOLOGY CORP

Supply Voltage-Max
5.5 V

Risk Rank
5.69

Number of I/Os
53

SRAM
16KB

PDMA
8

DAC
1*12-bit

ADC
16*12-bit， Vref

UART
5

Package
LQFP64

Operating Temperature
-40~+105˚C

Additional Feature
4KBYTE LDROM IS ALSO AVAILABLE

HTS Code
8542.31.00.01

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.5 mm

Reach Compliance Code
compliant

Frequency
72MHz

JESD-30 Code
S-PQFP-G64

Qualification Status
Not Qualified

Power Supplies
3/5 V

Temperature Grade
INDUSTRIAL

Memory Size
72KB

Download datasheets and manufacturer documentation for NUVOTON M451RD3AE.

Product Description:

The Nuvoton M451RD3AE is a high-performance, industrial-grade microcontroller designed for a wide range of embedded applications. This 32-bit RISC-based microcontroller features a Cortex-M4 CPU, 16KB RAM, and 73KB ROM, making it an ideal choice for applications requiring high processing power and low power consumption.

Features:

32-bit RISC-based Cortex-M4 CPU
16KB RAM and 73KB ROM
20-bit address bus and 20-bit external data bus
53 I/O lines and 4KBYTE LDROM
3/5 V power supplies
Industrial temperature range (-40°C to 105°C)
Low power consumption
DMA, PWM, and DAC channels
Surface mount package (LFQFP, QFP64, 0.47SQ, 20)

Applications:

Industrial automation and control systems
Medical devices and equipment
Automotive systems and components
Consumer electronics and appliances
Industrial sensors and transducers

Alternative Parts:

Nuvoton M451RD3AE is a suitable alternative to other industrial-grade microcontrollers such as:
- Texas Instruments MSP430F5438
- STMicroelectronics STM32F103RB
- Microchip PIC32MX795F512L

Embedded Modules:

The Nuvoton M451RD3AE is used in various embedded modules, including:
- Industrial control systems
- Medical device modules
- Automotive infotainment systems
- Consumer electronics modules

FAQs:

Q: What is the operating temperature range of the M451RD3AE? A: The operating temperature range is -40°C to 105°C.

Q: What is the supply voltage range of the M451RD3AE? A: The supply voltage range is 2.5V to 5.5V.

Q: What is the maximum clock frequency of the M451RD3AE? A: The maximum clock frequency is 24 MHz.

Q: Is the M451RD3AE RoHS compliant? A: Yes, the M451RD3AE is RoHS compliant.

Q: What is the package style of the M451RD3AE? A: The package style is FLATPACK, LOW PROFILE, FINE PITCH.
