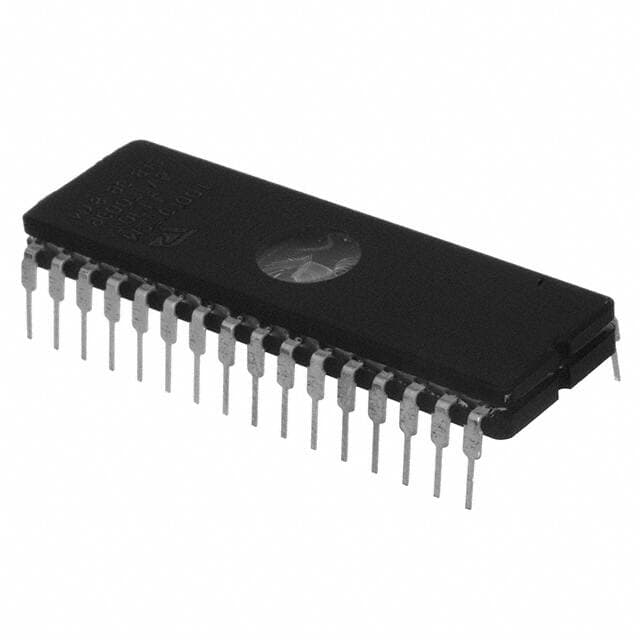

ST M27C801-120F1

Manufacturer No:

M27C801-120F1

Manufacturer:

Package:

32-CDIP (0.600, 15.24mm) Window

Description:

5V V Through Hole 32 Pin Memory IC M27C801 8 Mb kb 41.885mm mm 50mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M27C801-120F1 information

ST M27C801-120F1 technical specifications, attributes, parameters and parts with similar specifications to ST M27C801-120F1.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
32-CDIP (0.600, 15.24mm) Window

Number of Pins
32

Operating Temperature
0°C~70°C TA

Packaging
Tube

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Technology
EPROM - UV

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
M27C801

Pin Count
32

Qualification Status
Not Qualified

Power Supplies
5V

Memory Size
8Mb 1M x 8

Operating Supply Current
50mA

Nominal Supply Current
50mA

Memory Type
Non-Volatile

Operating Mode
ASYNCHRONOUS

Access Time
120ns

Memory Format
EPROM

Memory Interface
Parallel

Organization
1MX8

Output Characteristics
3-STATE

Memory Width
8

Density
8 Mb

Standby Current-Max
0.0001A

I/O Type
COMMON

Length
41.885mm

Height Seated (Max)
5.72mm

Width
15.24mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST M27C801-120F1.

M27C801-120F1 Overview

Non-Volatile is the type of memory it has. There is a Tube case available. The 32-CDIP (0.600, 15.24mm) Window case contains it. The chip has an 8Mb 1M x 8 memory. This device uses a EPROM-format memory, which is of mainstream design. A wide operating temperature range makes this device ideal for a variety of demanding applications. A voltage of 4.5V~5.5V can be supplied to memory ics. Its recommended mounting type is Through Hole. The chip has 32 terminations. For a comprehensive working procedure, this part supports as many as 1 functions. In order to operate this memory device, it must be supplied with 5V of power. Similar parts are frequently selected using M27C801, the device's base part number. The memory device is enclosed in a package with an 32-pin connector. There are 32 pins on this memory device, which indicates it has 32 memory locations in it. A voltage of 5V is noted as the operating supply voltage for this memory. In this chip, Through Hole mounting is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component is rated at 50mA. When it comes to power supplies, this memory chip only requires 5V . I/O port addresses on this device are mapped to memory addresses of COMMON bits. A supply current of 50mA is suggested for the device.

M27C801-120F1 Features

Package / Case: 32-CDIP (0.600, 15.24mm) Window
32 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

M27C801-120F1 Applications

There are a lot of STMicroelectronics
M27C801-120F1 Memory applications.

cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
