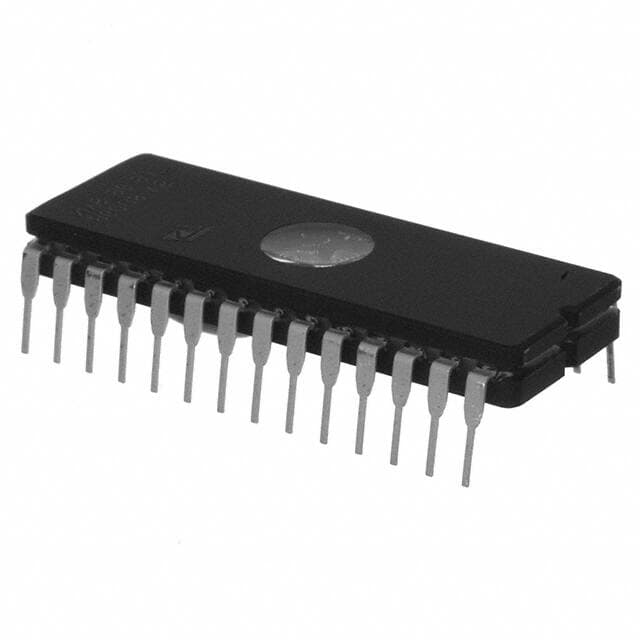

ST M27C256B-45XF1

Manufacturer No:

M27C256B-45XF1

Manufacturer:

Package:

28-CDIP (0.600, 15.24mm) Window

Description:

5V V Through Hole 28 Pin Memory IC M27C256 256 kb kb 37.34mm mm 50mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M27C256B-45XF1 information

ST M27C256B-45XF1 technical specifications, attributes, parameters and parts with similar specifications to ST M27C256B-45XF1.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
28-CDIP (0.600, 15.24mm) Window

Number of Pins
28

Operating Temperature
0°C~70°C TA

Packaging
Tube

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.32.00.61

Technology
EPROM - UV

Voltage - Supply
4.75V~5.25V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
M27C256

Pin Count
28

Operating Supply Voltage
5V

Power Supplies
5V

Memory Size
256Kb 32K x 8

Nominal Supply Current
50mA

Memory Type
Non-Volatile

Operating Mode
ASYNCHRONOUS

Access Time
45ns

Memory Format
EPROM

Memory Interface
Parallel

Organization
32KX8

Output Characteristics
3-STATE

Density
256 kb

Standby Current-Max
0.0001A

I/O Type
COMMON

Height
4.5mm

Length
37.34mm

Width
13.36mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST M27C256B-45XF1.

M27C256B-45XF1 Overview

Non-Volatile is its memory type. It is available in a case with a Tube shape. As you can see, it is embedded in 28-CDIP (0.600, 15.24mm) Window case. There is an 256Kb 32K x 8 memory capacity on the chip. In this device, the memory is of the EPROM-format, which is a popular format in the mainstream computing sector. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. A voltage of 4.75V~5.25V is possible to be applied to the supply. There is a recommendation that Through Hole mounting type should be used for this product. As you can see from the diagram, the chip is planted with 28 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 5V power supply. To select similar parts, many people use the device's base part number M27C256. It is encased in an 28-pin package that contains this ic memory chip. It has 28 pins indicating it has 28 memory locations. It is noted that the operating supply voltage of this memory is 5V. Chips such as this one are mounted using Through Hole mounting, a straightforward method of mounting that is effective. Memory chip's nominal supply current is 50mA. This memory chip requires a mere 5V of power. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device.

M27C256B-45XF1 Features

Package / Case: 28-CDIP (0.600, 15.24mm) Window
28 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

M27C256B-45XF1 Applications

There are a lot of STMicroelectronics
M27C256B-45XF1 Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
