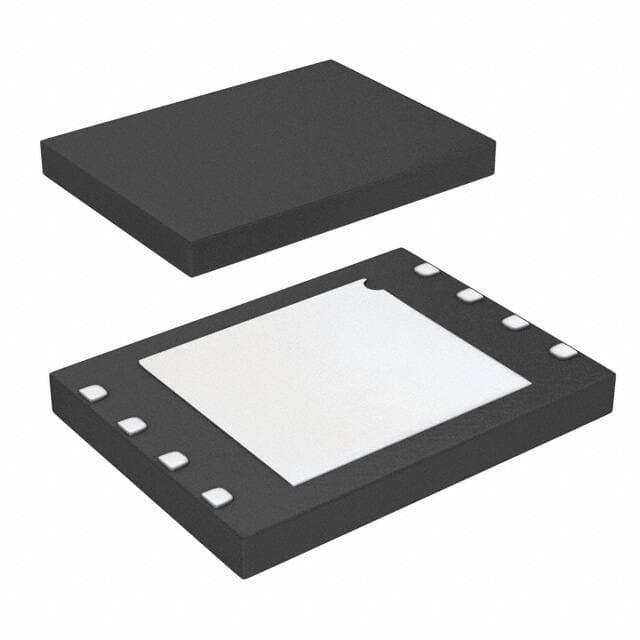

MICRON M25P32-VME6G

Manufacturer No:

M25P32-VME6G

Manufacturer:

MICRON

Package:

8-VDFN Exposed Pad

Description:

Surface Mount 8 Pin Memory IC M25P32 32 Mb kb 12mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M25P32-VME6G information

MICRON M25P32-VME6G technical specifications, attributes, parameters and parts with similar specifications to MICRON M25P32-VME6G.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-VDFN Exposed Pad

Number of Pins
8

Memory Types
Non-Volatile

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Published
2007

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

Termination
SMD/SMT

ECCN Code
3A991.B.1.A

Voltage - Supply
2.7V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
M25P32

Pin Count
8

Operating Supply Voltage
3.3V

Memory Size
32Mb 4M x 8

Nominal Supply Current
12mA

Clock Frequency
75MHz

Access Time
8 ns

Memory Format
FLASH

Memory Interface
SPI

Memory Width
8

Write Cycle Time - Word, Page
15ms, 5ms

Address Bus Width
22b

Density
32 Mb

Standby Current-Max
0.00001A

Parallel/Serial
SERIAL

Sync/Async
Synchronous

Word Size
8b

Serial Bus Type
SPI

Endurance
100000 Write/Erase Cycles

Data Retention Time-Min
20

Write Protection
HARDWARE/SOFTWARE

Page Size
256B

Ambient Temperature Range High
85°C

Height
850μm

REACH SVHC
No SVHC

Radiation Hardening
No

Download datasheets and manufacturer documentation for MICRON M25P32-VME6G.

Product Description:

The M25P32-VME6G is a 32-Megabit (4M x 8) Flash memory chip from Micron Technology Inc., designed for use in various applications where high storage capacity and low power consumption are essential. This SPI-based Flash memory features a 22-bit address bus width, an operating supply voltage of 3.3V, and a clock frequency of 75MHz. The device is packaged in an 8-VDFN exposed pad package and is available in a tray.

Features:

High storage capacity of 32 Megabytes (4M x 8)
Low power consumption with a nominal supply current of 12mA
Fast access time of 8ns
High endurance with 100,000 write/erase cycles
Supports both hardware and software write protection
Compatible with SPI serial bus interface
Operating temperature range of -40°C to 85°C
RoHS3 compliant and Pbfree

Applications:

Primary applications:
Embedded systems
Consumer electronics
Industrial control systems
Automotive systems
Secondary applications:
Medical devices
Aerospace systems
Military systems

Alternative Parts:

M25P16-VME6G (16-Megabit version)
M25P64-VME6G (64-Megabit version)
M25P128-VME6G (128-Megabit version)

Embedded Modules:

Various embedded systems and devices that require high-capacity storage and low power consumption

FAQs:

Q: What is the operating temperature range of the M25P32-VME6G? A: The operating temperature range is -40°C to 85°C.

Q: What is the access time of the M25P32-VME6G? A: The access time is 8ns.

Q: What is the endurance of the M25P32-VME6G? A: The endurance is 100,000 write/erase cycles.

Q: What is the packaging type of the M25P32-VME6G? A: The packaging type is a tray.

Q: Is the M25P32-VME6G RoHS compliant? A: Yes, the M25P32-VME6G is RoHS3 compliant.

Q: Is the M25P32-VME6G Pbfree? A: Yes, the M25P32-VME6G is Pbfree.

Q: What is the voltage range of the M25P32-VME6G? A: The voltage range is 2.7V to 3.6V.

Q: What is the write cycle time of the M25P32-VME6G? A: The write cycle time is 15ms for a word and 5ms for a page.

Q: What is the memory interface of the M25P32-VME6G? A: The memory interface is SPI (Serial Peripheral Interface).

Q: What is the memory format of the M25P32-VME6G? A: The memory format is FLASH.

Q: What is the memory width of the M25P32-VME6G? A: The memory width is 8 bits.

Q: What is the memory size of the M25P32-VME6G? A: The memory size is 32 Megabytes (4M x 8).

Q: What is the number of pins of the M25P32-VME6G? A: The number of pins is 8.

Q: What is the number of terminations of the M25P32-VME6G? A: The number of terminations is 8.

Q: What is the terminal pitch of the M25P32-VME6G? A: The terminal pitch is 1.27mm.

Q: What is the terminal position of the M25P32-VME6G? A: The terminal position is DUAL.

Q: What is the termination of the M25P32-VME6G? A: The termination is SMD/SMT.

Q: What is the time@peak reflow temperature of the M25P32-VME6G? A: The time@peak reflow temperature is 30 seconds.

Q: What is the voltage of the M25P32-VME6G? A: The voltage is 2.7V.

Q: What is the supply voltage of the M25P32-VME6G? A: The supply voltage is 3.3V.

Q: What is the standby current of the M25P32-VME6G? A: The standby current is 0.00001A.

Q: What is the sync/async of the M25P32-VME6G? A: The sync/async is synchronous.

Q: What is the radiation hardening of the M25P32-VME6G? A: The radiation hardening is no.

Q: What is the REACH SVHC of the M25P32-VME6G? A: The REACH SVHC is no SVHC.

Q: What is the published date of the M25P32-VME6G? A: The published date is 2007.
