Harwin M22-7141042
Harwin M22-7141042

Harwin M22-7141042

Manufacturer No:

M22-7141042

Manufacturer:

Harwin

Package:

Description:

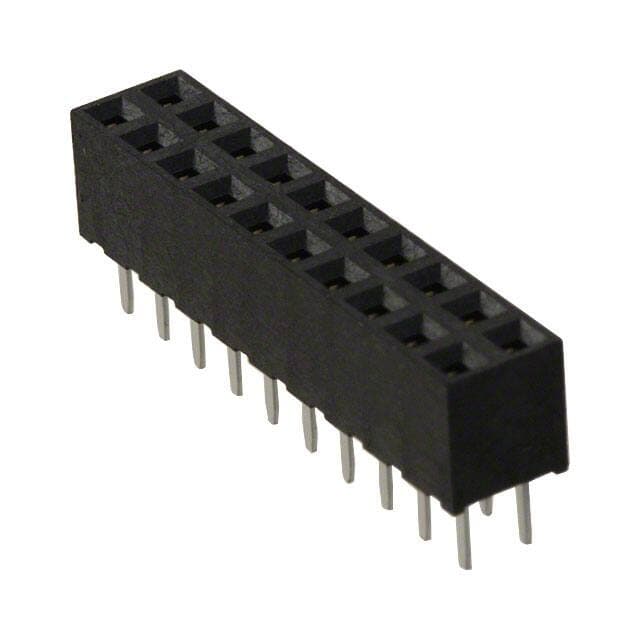

2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M22-7141042 information

Harwin M22-7141042 technical specifications, attributes, parameters and parts with similar specifications to Harwin M22-7141042.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Liquid Crystal Polymer (LCP)
  • Material
  • Nylon
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tube
  • Series
  • M22
  • Published
  • 2009
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Receptacle
  • Number of Positions
  • 20
  • Applications
  • General Purpose, Industrial, Telecommunications
  • Number of Rows
  • 2
  • Voltage - Rated
  • 500VAC
  • Additional Feature
  • ROHS COMPLIANT
  • Fastening Type
  • Push-Pull
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Female Socket
  • Mixed Contacts
  • NO
  • Current Rating (Amps)
  • 2A
  • Orientation
  • Straight
  • Depth
  • 4mm
  • Insulation Height
  • 0.173 4.40mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.079 2.00mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.094 2.40mm
  • Number Of PCB Rows
  • 2
  • Contact Finish - Post
  • Tin
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.157 inch

Download datasheets and manufacturer documentation for Harwin M22-7141042.

Datasheets:

M22-7141042 Overview


Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the M22 Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ROHS COMPLIANT, to name a few.This device may be used for the purpose of General Purpose, Industrial, Telecommunications.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
