Harwin M22-2010205

Manufacturer No:

M22-2010205

Manufacturer:

Harwin

Package:

SIL

Description:

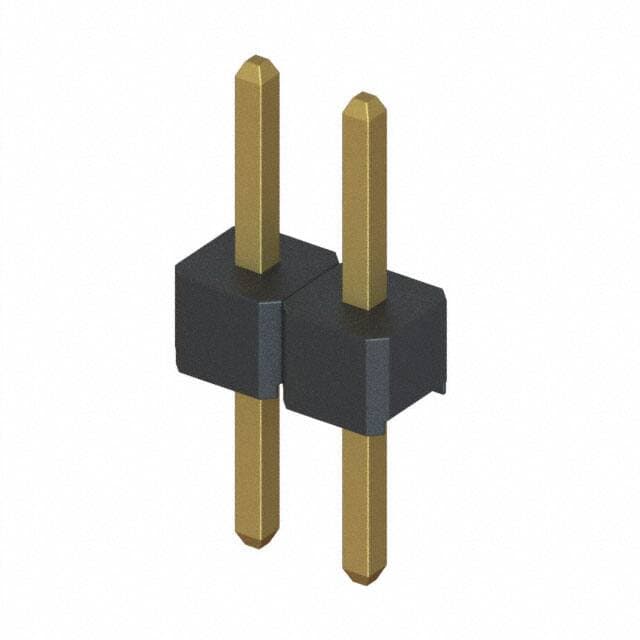

M22 Series 1-Row Header, Cuttable Solder Phosphor Bronze Bulk Through Hole Gold Polyamide (PA6T), Nylon 6T 2-Position Board to Board 0.059 1.50mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M22-2010205 information

Harwin M22-2010205 technical specifications, attributes, parameters and parts with similar specifications to Harwin M22-2010205.

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
SIL

Contact Shape
Square

Insulation Material
Polyamide (PA6T), Nylon 6T

Housing Material
Nylon

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
M22

Published
2008

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header, Cuttable

Number of Positions
2

Number of Rows
1

Gender
Male

Voltage - Rated
650V

Additional Feature
ROHS COMPLIANT

Fastening Type
Push-Pull

Subcategory
Headers and Edge Type Connectors

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
1A per Contact

Orientation
Straight

Depth
2mm

Insulation Height
0.059 1.50mm

Style
Board to Board

Number of Positions Loaded
All

Current Rating
1A

Pitch - Mating
0.079 2.00mm

Number of Conductors
ONE

Reference Standard
UL

Voltage - Rated AC
250V

Reliability
COMMERCIAL

Contact Length - Post
0.134 3.40mm

Download datasheets and manufacturer documentation for Harwin M22-2010205.

Datasheets:

harwininc-m222010605-datasheets-7081.pdf

M22-2010205 Overview

Packaging is Header, Cuttable.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the M22 Series, it can be found in this category.There are also other features such as ROHS COMPLIANT, to name only a few.An enclosed device is enclosed in the packaging with the SIL.In this case, Through Hole mounts the part.The device is operating at -55°C~105°C Operating Temperature.

M22-2010205 Features

M22 series

M22-2010205 Applications

There are a lot of Harwin Inc.
M22-2010205 Rectangular Connectors applications.
