NKK Switches M2015TXG13-DA

Manufacturer No:

M2015TXG13-DA

Manufacturer:

Package:

Description:

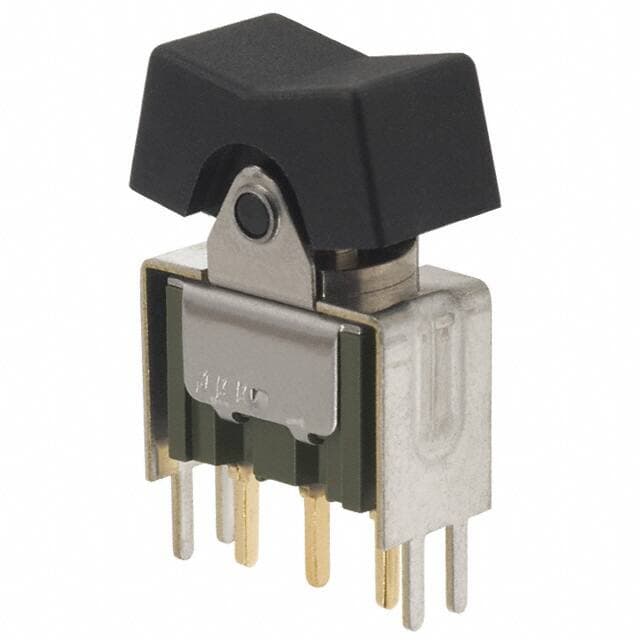

Bracket PC Mount Miniature Rocker; Status: Active; Poles: SPDT; Circuits: On-Mom; Current Rating: 0.4VA (AC/DC); Rating (AC): 28V; Rating (DC): 28V; Actuator Type: Concave (Standard V); Actuator Cap Color: Black; Actuator Marking: No Marking; Mounting Type: Through Hole; Termination Style: PC Pin; Features: Epoxy Sealed Terminals; Rating: 0.4; Illumination: Non-Illuminated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M2015TXG13-DA information

NKK Switches M2015TXG13-DA technical specifications, attributes, parameters and parts with similar specifications to NKK Switches M2015TXG13-DA.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
NKK SWITCHES CO LTD

Reach Compliance Code
not_compliant

ECCN Code
EAR99

HTS Code
8536.50.90.40

Samacsys Manufacturer
NKK Switches

Actuator Angle
25 deg

Actuator Color
BLACK

Actuator Length
0.346 inch

Actuator Material
NYLON

Actuator Type
WIDE ROCKER TYPE

Body Breadth
8 mm

Body Height
11.8 mm

Body Length or Diameter
15.8 mm

Center Contact Material
COPPER ALLOY

Center Contact Plating
GOLD OVER NICKEL

Contact (AC) Max Rating R Load
.014A@28VAC

Contact Current(AC)-Max
0.014 A

Contact Current(DC)-Max
0.014 A

Contact (DC) Max Power Rating R Load
0.4VA@28VDC

Contact (DC) Max Rating R Load
.014A@28VDC

Contact Function
ON-(ON)

Contact Voltage(AC)-Max
28 V

Contact Voltage(DC)-Max
28 V

Dielectric Withstand Volts
1500VAC V

Electrical Life
50000 Cycle(s)

End Contact Material
COPPER ALLOY

End Contact Plating
GOLD OVER NICKEL

Housing Material
STAINLESS STEEL

Insulation Resistance
1000000000 Ω

Insulator Material
DIALLYL PHTHALATE

JESD-609 Code
e4

Mounting Feature
THROUGH HOLE-STRAIGHT

Operating Temperature-Max
85 °C

Operating Temperature-Min
-30 °C

PCB Hole Count
7

Sealing
EPOXY TERMINAL SEALED

Solderability
WAVE

Surface Mount
NO

Switch Action
MOMENTARY

Switch Function
SPDT

Switch Type
ROCKER SWITCH

Terminal Finish
GOLD OVER NICKEL/SILVER

Terminal Length
0.189 inch

Terminal Material
COPPER ALLOY
