MA/COM M20001G-14

Manufacturer No:

M20001G-14

Manufacturer:

MA/COM

Package:

16-VFQFN Exposed Pad

Description:

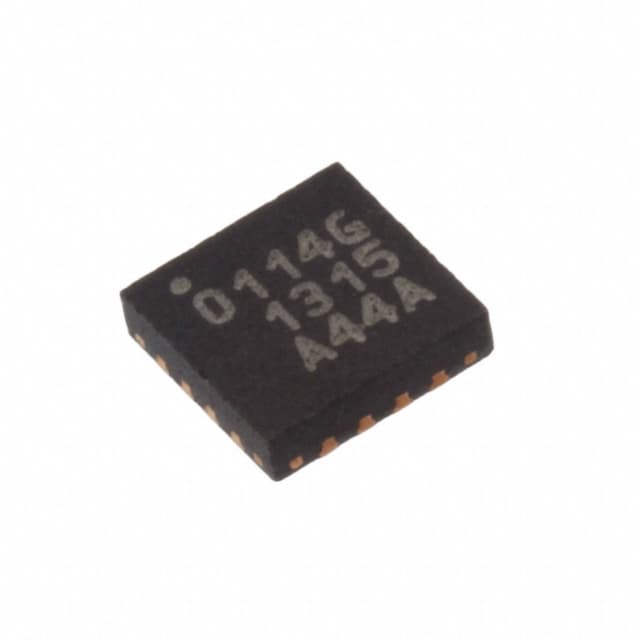

SPDT 15.5Ohm QUAD Analog Switches 3.3V 16-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20001G-14 information

MA/COM M20001G-14 technical specifications, attributes, parameters and parts with similar specifications to MA/COM M20001G-14.

Type
Parameter

Factory Lead Time
26 Weeks

Mounting Type
Surface Mount

Package / Case
16-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Cut Tape (CT)

Published
2011

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
16

Resistance
15.5Ohm

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

JESD-30 Code
S-XQCC-N16

Number of Circuits
2

-3db Bandwidth
6GHz

On-State Resistance (Max)
15.5Ohm

Telecom IC Type
TELECOM CIRCUIT

Multiplexer/Demultiplexer Circuit
2:1

Switch Circuit
SPDT

Crosstalk
-30dB @ 6GHz

Voltage - Supply, Single (V+)
2.97V~3.63V

Length
3mm

Height Seated (Max)
0.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MA/COM M20001G-14.

Datasheets:

macomtechnologysolutions-m20001g14-datasheets-0135.pdf

M20001G-14 Overview

The electrical component comes in 16-VFQFN Exposed Pad packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Cut Tape (CT) is used. In Surface Mount, you'll find this switch device. In the multiplexer and demultiplexer, 2:1 represents the number of circuits. Operating temperature around -40°C~85°C TA extended. In total, 16 terminations have occurred. When the electronic component is given a voltage of 3.3V, it should be turned on and run. On the other hand, analog switches can be constructed using SPDT switching circuits. Circuits number 2 make up this analogue multiplexer. A 15.5Ohm internal resistance characterizes this multiplexer. Analogue multiplexers require a 2.97V~3.63V voltage to drain from a single voltage supply.

M20001G-14 Features

Switch Circuit: SPDT
-3db Bandwidth: 6GHz

M20001G-14 Applications

There are a lot of M/A-Com Technology Solutions
M20001G-14 Analog Switches & Multiplexers ICs applications.

Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)

User Guide
