Harwin M20-9770242
Harwin M20-9770242

Harwin M20-9770242

Manufacturer No:

M20-9770242

Manufacturer:

Harwin

Package:

SIL

Description:

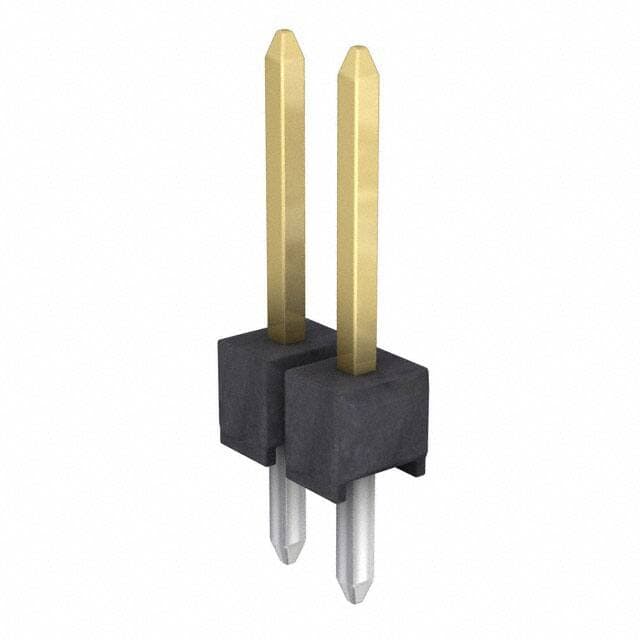

M20 Series 1-Row Header, Cuttable Solder Brass Bulk Through Hole Gold Polyamide (PA6T), Nylon 6T 2-Position Board to Board or Cable 0.100 2.54mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-9770242 information

Harwin M20-9770242 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-9770242.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • SIL
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA6T), Nylon 6T
  • Housing Material
  • Nylon
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • M20
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header, Cuttable
  • Number of Positions
  • 2
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 750V
  • Additional Feature
  • ROHS COMPLIANT
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 3A per Contact
  • Orientation
  • Straight
  • Depth
  • 2.54mm
  • Insulation Height
  • 0.100 2.54mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.100 2.54mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.122 3.10mm
  • Shrouding
  • Unshrouded
  • Number Of PCB Rows
  • 1
  • Contact Finish - Post
  • Tin

Download datasheets and manufacturer documentation for Harwin M20-9770242.

Datasheets:

M20-9770242 Overview


The product comes in a package of Header, Cuttable.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the M20 Series.Among other features are ROHS COMPLIANT, to name only a few.There is a device enclosed in the packaging with the SIL.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.

M20-9770242 Features


M20 series


M20-9770242 Applications


There are a lot of Harwin Inc.
M20-9770242 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology

User Guide
