Harwin M20-8770342R
Harwin M20-8770342R

Harwin M20-8770342R

Manufacturer No:

M20-8770342R

Manufacturer:

Harwin

Package:

SIL

Description:

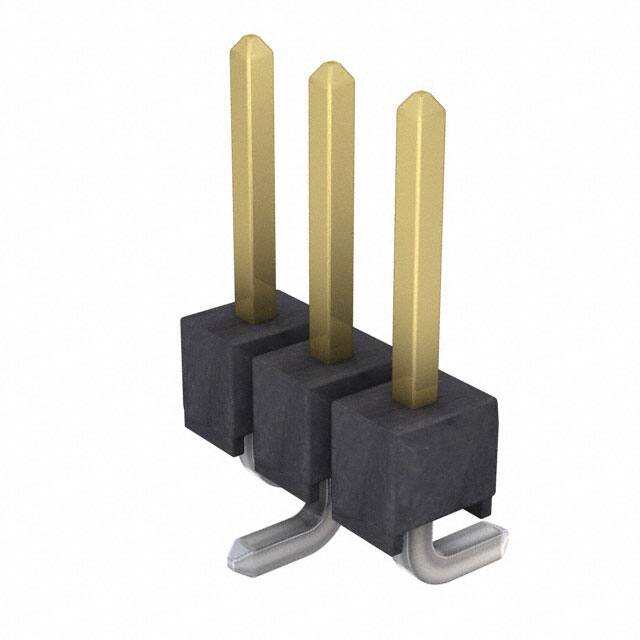

M20 Series 1-Row Header, Cuttable Solder Brass Tape & Reel (TR) Surface Mount Gold Polyamide (PA6T), Nylon 6T 3-Position Board to Board or Cable 0.100 2.54mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-8770342R information

Harwin M20-8770342R technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-8770342R.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Brass
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SIL
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA6T), Nylon 6T
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • M20
  • Published
  • 2005
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header, Cuttable
  • Number of Positions
  • 3
  • Number of Rows
  • 1
  • Gender
  • Male
  • Additional Feature
  • ROHS COMPLIANT
  • Fastening Type
  • Push-Pull
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 3A per Contact
  • Total Number of Contacts
  • 3
  • Insulation Height
  • 0.100 2.54mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Shrouding
  • Unshrouded
  • Number Of PCB Rows
  • 2
  • Lead Pitch
  • 2.54mm
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.228 5.80mm
  • PCB Contact Pattern
  • STAGGERED

Download datasheets and manufacturer documentation for Harwin M20-8770342R.

Datasheets:

M20-8770342R Overview


Currently, it is packaged in Header, Cuttable.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the M20 Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ROHS COMPLIANT, to name a few.SIL means there is a device enclosed in the packaging.Surface Mount represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.

M20-8770342R Features


M20 series


M20-8770342R Applications


There are a lot of Harwin Inc.
M20-8770342R Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology

User Guide
