Harwin M20-6153205
Harwin M20-6153205

Harwin M20-6153205

Manufacturer No:

M20-6153205

Manufacturer:

Harwin

Package:

Description:

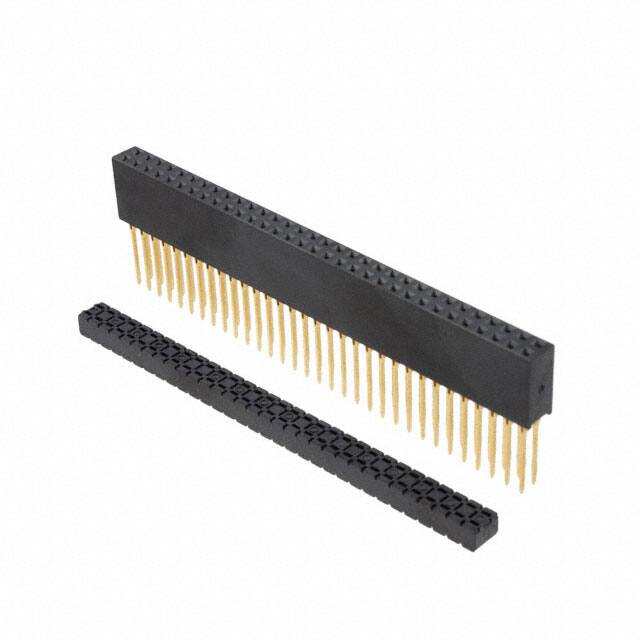

M20 Series Stackthrough, Unkeyed + Organizer (PC/104) Press-Fit Gold Black 10.0?in 0.25?m 64 Positions Pitch: 0.100 2.54mm -55°C~105°C Tube Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-6153205 information

Harwin M20-6153205 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-6153205.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Bronze
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Material
  • Glass, Polyester
  • Housing Material
  • Polyphenylene
  • Weight
  • 14.275005g
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tube
  • Series
  • M20
  • Published
  • 2012
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Press-Fit
  • ECCN Code
  • EAR99
  • Connector Type
  • Stackthrough, Unkeyed + Organizer (PC/104)
  • Number of Positions
  • 64
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Receptacle
  • Voltage - Rated
  • 12V
  • Additional Feature
  • COMPLIANT FIT
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Pitch
  • 0.100 2.54mm
  • Total Number of Contacts
  • 64
  • Orientation
  • Straight
  • Depth
  • 5.25mm
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 2
  • Lead Pitch
  • 2.54mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.193 inch
  • UL Flammability Code
  • 94V-0
  • Rated Current (Signal)
  • 1A

Download datasheets and manufacturer documentation for Harwin M20-6153205.

Datasheets:

M20-6153205 Overview


It comes in Stackthrough, Unkeyed + Organizer (PC/104) packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the M20 Series of products.In addition, there are other features such as COMPLIANT FIT, to mention only a few.The part is mounted by Through Hole.The device runs in -55°C~105°C Operating Temperature.
