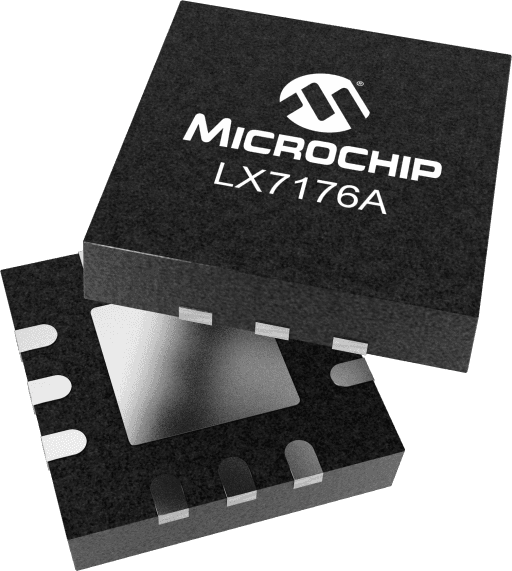

Microchip LX7176ACLQ-TR
Manufacturer No:
LX7176ACLQ-TR
Manufacturer:
Package:
12-VFLGA
Description:
The LX7176A is a 4A step-down regulator with integrated MOSFETs packaged in a space saving QFN12 2mm x 2mm for today’s mobile devices. It uses an ultra fast, constant frequency hysteretic control method to minimize external filter components while maintaining excellent regulation. The LX7176A reference voltage is 0.6V. The LX7176A operates from 3V to 5.5V rails and outputs 0.6V to 100% of the input voltage. Cycle-by-cycle current limiting protects against overcurrent conditions. Hiccup mode provides protection for heavy over-load or short-circuit faults. Thermal protection shuts down the regulator under overtemperature conditions. Over voltage conditions will immediately shut off the output to protect against permanent damage. The LX7176A automatically restarts when all fault conditions are cleared. Internal soft start circuitry limits start up inrush currents.
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
LX7176ACLQ-TR Information
Microchip LX7176ACLQ-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip LX7176ACLQ-TR.
- Type
- Parameter
- Max Duty Cycle (%)
- 100.0
- Input Voltage Range Max
- 5.5
- Input Voltage Range Min
- 3.0
- # of Outputs
- 1
- Output Current
- 4000
- Driver Type
- Buck
- Synchronous Rectifier
- Yes
- Temp Range Max °C (degrees Celsius)
- 85
- UVLO
- Yes
- Vout Max
- 3.3
- Type
- Parameter
- Vfb V (volt)
- 0.6
- Vout Min
- 0.8
Download datasheets and manufacturer documentation for Microchip LX7176ACLQ-TR.
Data Sheets:
User Guide:
The LX7176A is a 4A step-down regulator with integrated MOSFETs packaged in a space saving QFN12 2mm x 2mm for today’s mobile devices. It uses an ultra fast, constant frequency hysteretic control method to minimize external filter components while maintaining excellent regulation. The LX7176A reference voltage is 0.6V. The LX7176A operates from 3V to 5.5V rails and outputs 0.6V to 100% of the input voltage. Cycle-by-cycle current limiting protects against overcurrent conditions. Hiccup mode provides protection for heavy over-load or short-circuit faults. Thermal protection shuts down the regulator under overtemperature conditions. Over voltage conditions will immediately shut off the output to protect against permanent damage. The LX7176A automatically restarts when all fault conditions are cleared. Internal soft start circuitry limits start up inrush currents.
- 0-4A Step-down Regulator
- Operational Input Supply Voltage Range: 3V-5.5V (short durations to 6.5V.)
- Hysteretic control offers best transient response
- CCM switching at a constant 1.65MHz
- Automatically switches to DCM switching under light loads to improve efficiency
- 100% Duty Ratio Operation
- Input under voltage and over voltage protection
- Enable and Power Good Function
- Internal soft-start
- Cycle-by-Cycle Over Current Protection
- Hiccup Mode protects against short circuit faults
- RoHS Compliant
