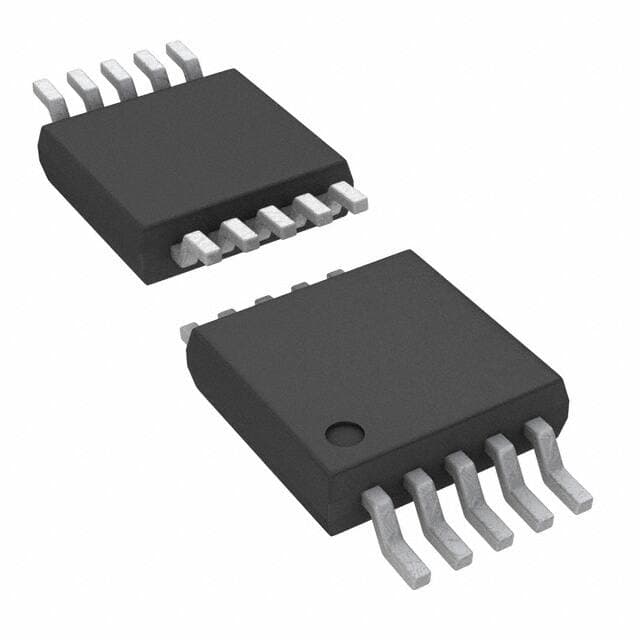

ONSEMI LV8548MCZ-AH

Manufacturer No:

LV8548MCZ-AH

Manufacturer:

ONSEMI

Package:

10-SOP (0.154, 3.90mm Width)

Description:

Tape & Reel (TR) 10-SOP (0.154, 3.90mm Width) Logic 4V~16V Surface Mount -30°C~85°C TA DC Motors, General Purpose, Stepper Motors Half Bridge (4) Inductive 4V~16V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LV8548MCZ-AH information

ONSEMI LV8548MCZ-AH technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LV8548MCZ-AH.

Type
Parameter

Factory Lead Time
36 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-SOP (0.154, 3.90mm Width)

Number of Pins
10

Operating Temperature
-30°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
10

Terminal Finish
Tin (Sn)

Applications
DC Motors, General Purpose, Stepper Motors

HTS Code
8542.39.00.01

Technology
DMOS

Voltage - Supply
4V~16V

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
1mm

Operating Supply Voltage
16V

Supply Voltage-Min (Vsup)
4V

Interface
Logic

Output Configuration
Half Bridge (4)

Output Current per Channel
1A

Voltage - Load
4V~16V

Rds On (Typ)
1 ?

Load Type
Inductive

Length
4.9mm

Height Seated (Max)
2mm

Width
3.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI LV8548MCZ-AH.

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

LV8548MCZ-AH Overview

It is packaged with Tape & Reel (TR).For cost-saving purposes, H bridge is included in the 10-SOP (0.154, 3.90mm Width) package.In addbridge driverion, 4V~16V can be used to improve reliabilbridge drivery.H bridge circuit is mounted on Surface Mount.A normal operation of -30°C~85°C TA is enabled by motor driver H bridges operating temperature.This tool is useful for a number of applications, including DC Motors, General Purpose, Stepper Motors.PCB mounting is performed using Surface Mount.A transmission line is terminated with a H bridge that matches its characteristic impedance, referred to as a 10 termination.In a signal interface, the 10 pins serve as pronged contacts.H bridge circuit operates on a voltage of 12V.This H bridge circuit incorporates an analog IC with the type STEPPER MOTOR CONTROLLER.The operating supply voltage is maintained at 16V in order to ensure high efficiency.
