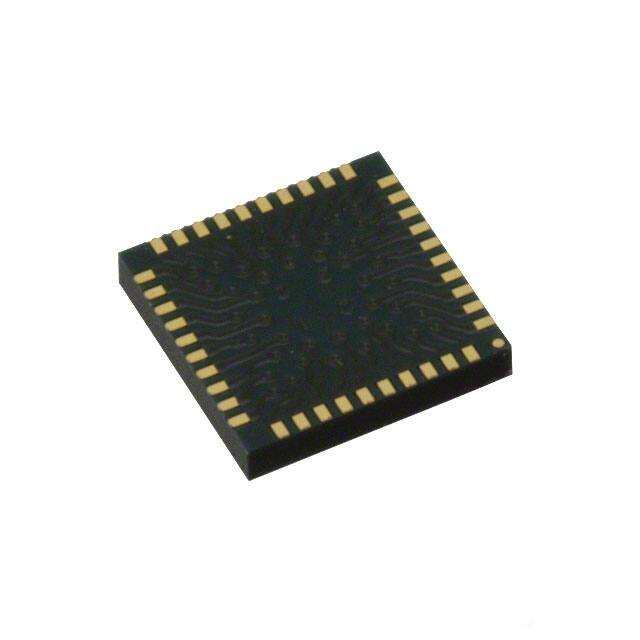

ONSEMI LV8044LP-MPB-H

Manufacturer No:

LV8044LP-MPB-H

Manufacturer:

ONSEMI

Package:

40-VFQFN

Description:

600mA mA 850?m mm 5mm mm Motor Drivers 40 3.3V V 5mm mm Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LV8044LP-MPB-H information

ONSEMI LV8044LP-MPB-H technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LV8044LP-MPB-H.

Type
Parameter

Lifecycle Status
OBSOLETE (Last Updated: 1 week ago)

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
40-VFQFN

Number of Pins
40

Operating Temperature
-20°C~85°C TA

Packaging
Tray

Published
2011

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
40

Type
Integrated Circuit (IC)

Applications
Camera

HTS Code
8542.39.00.01

Subcategory
Motion Control Electronics

Technology
Bi-CMOS

Voltage - Supply
2.7V~5.5V

Terminal Position
QUAD

Supply Voltage
3.3V

Terminal Pitch
0.4mm

Base Part Number
LV8044

Function
Driver - Fully Integrated, Control and Power Stage

Max Output Current
600mA

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
2.7V

Interface
Serial

Nominal Supply Current
100?A

Output Configuration
Half Bridge (12)

Power Dissipation
1.4W

Logic Function
AND

Halogen Free
Halogen Free

Supply Current-Max (Isup)
4mA

Collector Emitter Voltage (VCEO)
5V

Max Collector Current
400mA

Voltage - Load
2.7V~5.5V

Switching Frequency
100kHz

Motor Type
Stepper

Motor Type - AC, DC
Brushed DC

Motor Type - Stepper
Bipolar

Height
850?m

Length
5mm

Width
5mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI LV8044LP-MPB-H.

Datasheets:

onsemiconductor-lv8044lptlmh-datasheets-3267.pdf

onsemiconductor-lv8044lptlmh-datasheets-3268.pdf

LV8044LP-MPB-H Overview

The design contains a Traypackage.This part is packed in a 40-VFQFN case.Drivers controllers is recommended that the part be mounted by Surface Mount.For the component connected to [0], it is suitable.This device is capable of supplying voltages up to 2.7V~5.5V volts.Operation temperature ranges from -20°C~85°C TA.This motor type can be categorized as Brushed DC.A total of 40terminations are available in this part.There is the option of applying the voltage to the load at the rate of 2.7V~5.5V.Drivers controllers is very important to keep in mind that this amplifier should be operated at 3.3V.There is a recommended mounting method of Surface Mount.This can be determined by looking at the LV8044 part number.40pins are present on the device.This is part of the Motion Control Electronics series.There are a total of 6outputs available.This motor type can be recognized as Stepper.For the purposes of meeting its operation requirements, the maximum output current reaches [0].

LV8044LP-MPB-H Features

Applications : Camera
Load voltage across the chip 2.7V~5.5V
base on LV8044 number
designed with 6 outputs
Motor Type classified as Stepper

LV8044LP-MPB-H Applications

There are a lot of ON Semiconductor
LV8044LP-MPB-H motor drivers applications.

Dash
Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
Tail lights
Turn signals
Brake lights
CHMSL (center high-mount stop lamps)
parking lights
