Manufacturer No:

LV5235VZ-TLM-H

Manufacturer:

ONSEMI

Package:

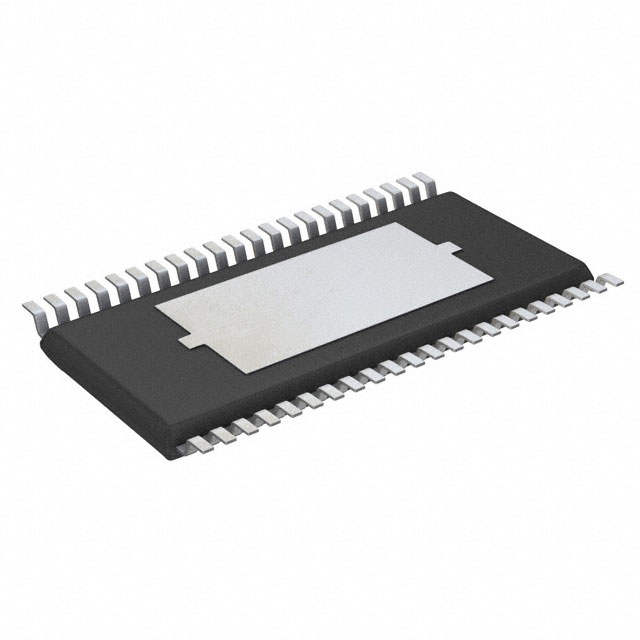

44-LSSOP (0.220, 5.60mm Width) Exposed Pad

Description:

PMIC 1MHz 44-LSSOP (0.220, 5.60mm Width) Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LV5235VZ-TLM-H information

ONSEMI LV5235VZ-TLM-H technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LV5235VZ-TLM-H.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 44-LSSOP (0.220, 5.60mm Width) Exposed Pad
  • Operating Temperature
  • -25°C~75°C TA
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • JESD-609 Code
  • e6
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • ECCN Code
  • EAR99
  • Type
  • Linear
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • HTS Code
  • 8542.39.00.01
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Frequency
  • 1MHz
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Number of Outputs
  • 18
  • Max Supply Voltage
  • 5.5V
  • Voltage - Output
  • 42V
  • Output Current per Channel
  • 100mA
  • Current - Output / Channel
  • 100mA
  • Dimming
  • PWM
  • Voltage - Supply (Min)
  • 4.5V
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ONSEMI LV5235VZ-TLM-H.

Datasheets:

ReachStatement:

LV5235VZ-TLM-H Overview


As a result of its 44-LSSOP (0.220, 5.60mm Width) Exposed Pad package, it helps to save board space on the board. It has 18 outputs for LED drivers.We are using Surface Mount as the mounting method.With high efficiency, it emerges as a Linear.It is possible for the led driver ic to function normally at -25°C~75°C TA.Using the frequency of 1MHz, it operates.If the voltage supply is lower than 4.5V, undetermined failures may occur.This is mounted by Surface Mount.5.5V is an acceptable maximum value for the supply voltage.The output voltage of the device is 42V.

LV5235VZ-TLM-H Features


Available in the 44-LSSOP (0.220, 5.60mm Width) Exposed Pad package
Operating temperature of -25°C~75°C TA
Frequency of 1MHz


LV5235VZ-TLM-H Applications


There are a lot of ON Semiconductor
LV5235VZ-TLM-H LED Driver ICs applications.


  • High-end retail lighting
  • Medical surgery lighting
  • Replacement lamps
  • Panel lighting
  • Down lights
  • Linear fluorescent
  • A- lamps
  • General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
  • Industrial LED Lighting: Image Recognition Devices
  • Stage Lighting and Signage
