ONSEMI LV52207NXA-VH

Manufacturer No:

LV52207NXA-VH

Manufacturer:

ONSEMI

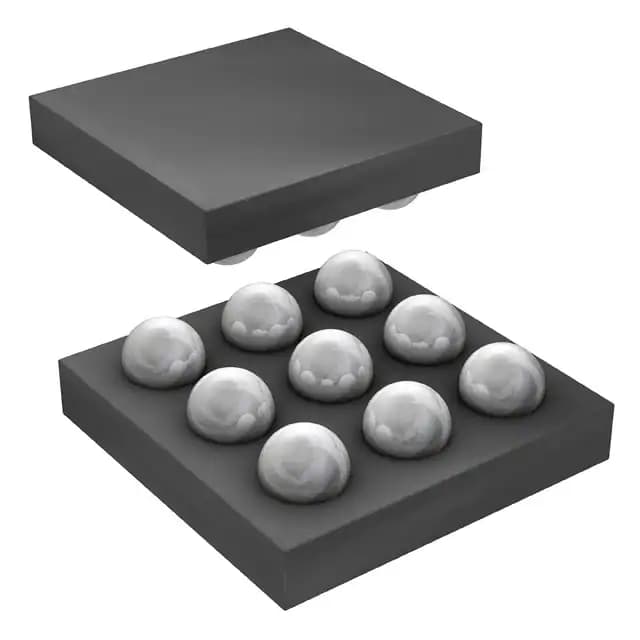

Package:

9-UFBGA, WLCSP

Description:

0.4mm PMIC 9 Pin 600kHz 3.6V 9-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LV52207NXA-VH information

ONSEMI LV52207NXA-VH technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LV52207NXA-VH.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
9-UFBGA, WLCSP

Number of Pins
9

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2015

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
9

Type
DC DC Regulator

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Applications
Backlight

Subcategory
Display Drivers

Technology
BICMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
3.6V

Terminal Pitch
0.4mm

Frequency
600kHz

Number of Outputs
2

Max Output Current
40mA

Max Output Voltage
40V

Topology
Step-Up (Boost)

Min Input Voltage
2.7V

Max Input Voltage
5.5V

Output Current per Channel
20mA

Internal Switch(s)
Yes

Dimming
PWM

Switching Frequency
600kHz

Nominal Input Voltage (DC)
3.6V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI LV52207NXA-VH.

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

LV52207NXA-VH Overview

Its 9-UFBGA, WLCSP package is used to save board space. There are 2 outputs used for the design of this LED drivers.It adopts the way of Surface Mount for mounting.It emergys as a DC DC Regulator with high efficiency and reliable performance.It is able to work normally at the operating temperature of -40°C~85°C TA.It provides considerable benefits for Backlight.It operates based on the frequency of 600kHz.9 terminations are designed for its operation.There are 9 pins used to form the base of its configuration.It is mounted in the way of Surface Mount.The supply voltage of 5.5V is an acceptable maximum value.It is also classified into Display Drivers according to its characteristics.It operates with the minimal input voltage of 2.7V.The allowable maximum value of supply current reaches 5.5V.When the switching frequency is maintained at 600kHz, this electronic component is able to fully play its functions.It is capable of delivering all benefits of a LED driver when operating with the maximal output current of 40mA.The output voltage should not be in excess of 40V.

LV52207NXA-VH Features

Available in the 9-UFBGA, WLCSP package
Operating temperature of -40°C~85°C TA
Frequency of 600kHz
Supply voltage of 3.6V
Switching frequency of 600kHz

LV52207NXA-VH Applications

There are a lot of ON Semiconductor
LV52207NXA-VH LED Driver ICs applications.

General lighting
Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
