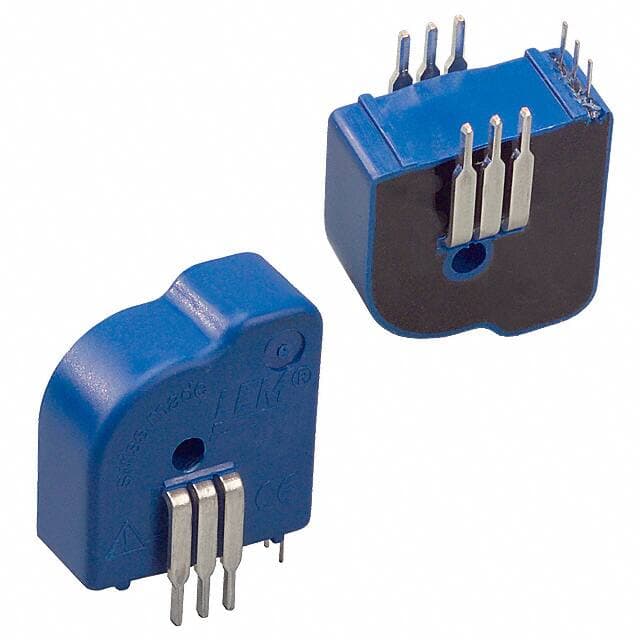

LEM LTS 6-NP

Manufacturer No:

LTS 6-NP

Manufacturer:

LEM

Package:

Module, Single Pass Through

Description:

LTS Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C 5V DC~200kHz 6A Accuracy-±0.2% Linearity-±0.1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTS 6-NP information

LEM LTS 6-NP technical specifications, attributes, parameters and parts with similar specifications to LEM LTS 6-NP.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
Module, Single Pass Through

Surface Mount
NO

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
LTS

Published
2009

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Voltage - Supply
5V

Terminal Position
UNSPECIFIED

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Frequency
DC~200kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
Ratiometric, Voltage

Pin Count
6

JESD-30 Code
R-PXSS-T6

Supply Voltage-Max (Vsup)
5.25V

Supply Voltage-Min (Vsup)
4.75V

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
Bidirectional

Accuracy
±0.2%

Response Time
0.4?s

Sensor Type
Hall Effect, Closed Loop

Linearity
±0.1%

Sensitivity
104.16mV/A

For Measuring
AC/DC

Current - Sensing
6A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM LTS 6-NP.

Datasheets:

lemusainc-lts6np-datasheets-1808.pdf

lemusainc-cas6np-datasheets-1637.pdf

LTS 6-NP Overview

A Module, Single Pass Through package is used for the protection of the current sensors. A Bulk is used to protect the current sensors against damage. A 6 termination is present on the current sensors. The current sensors are capable of supplying voltages of 5V while in operation. Current sensors should supply 4.75V as the minimum voltage. However, the current sensor voltage should not exceed 5.25V. The pin count of this electronic part is 6.

LTS 6-NP Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: 5V
Frequency: DC~200kHz
Sensing Current: 6A
Module, Single Pass Through Package

LTS 6-NP Applications

There are a lot of LEM USA Inc.
LTS 6-NP Current Sensors applications.

DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
