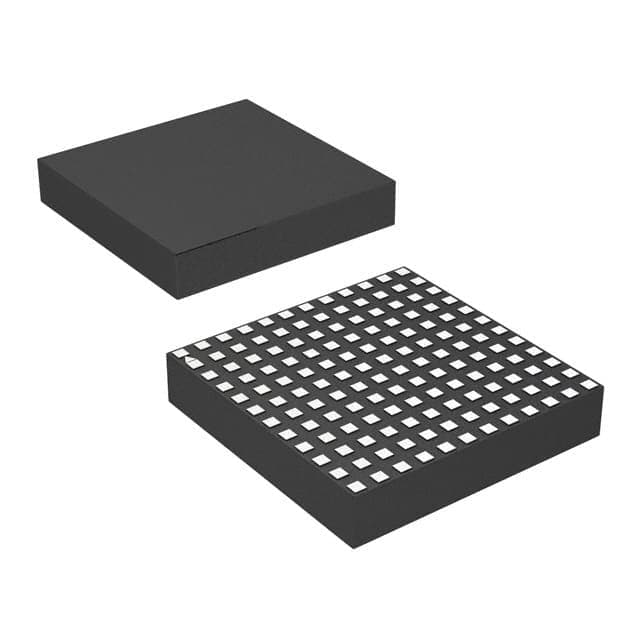

ADI LTM4628IV#PBF
ADI LTM4628IV#PBF

ADI LTM4628IV#PBF

Manufacturer No:

LTM4628IV#PBF

Manufacturer:

ADI

Package:

144-BLGA Module

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTM4628IV#PBF information

ADI LTM4628IV#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTM4628IV#PBF.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 3 months ago)
  • Factory Lead Time
  • 12 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 144-BLGA Module
  • Number of Pins
  • 144
  • Supplier Device Package
  • 144-LGA (15x15)
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tray
  • Series
  • µModule®
  • Published
  • 2012
  • Size / Dimension
  • 0.59Lx0.59W x 0.17 H 15.0mmx15.0mmx4.3mm
  • Feature
  • OCP, OVP, UVLO
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Type
  • Non-Isolated PoL Module
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -40°C
  • Applications
  • ITE (Commercial)
  • Base Part Number
  • LTM4628
  • Number of Outputs
  • 2
  • Voltage - Input (Max)
  • 26.5V
  • Output Voltage
  • 5.5V
  • Output Type
  • Adjustable
  • Max Output Current
  • 8A
  • Voltage - Input (Min)
  • 4.5V
  • Number of Channels
  • 1
  • Operating Supply Current
  • 5mA
  • Current - Output (Max)
  • 8A 8A
  • Output Current
  • 8A
  • Max Output Voltage
  • 5.5V
  • Voltage - Output 2
  • 0.6V~5.5V
  • Min Input Voltage
  • 4.5V
  • Max Input Voltage
  • 26.5V
  • Min Output Voltage
  • 600mV
  • Switching Frequency
  • 750kHz
  • Height
  • 4.318mm
  • Length
  • 14.986mm
  • Width
  • 14.986mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTM4628IV#PBF.

Datasheets:

PCN Assembly/Origin:

The Analog Devices LTM4628IV#PBF is a high-performance, high-efficiency, synchronous step-down DC/DC converter. It is designed to provide a regulated output voltage from 0.6V to 5.5V with a maximum output current of 28A. The device is housed in a 28-QFN package and is ideal for applications requiring high power density and low noise operation.

Features of the LTM4628IV#PBF include:

? High efficiency: up to 95%
? Low output voltage ripple: <1mV
? Low quiescent current: <1mA
? Wide input voltage range: 4.5V to 28V
? Programmable switching frequency: up to 2MHz
? Over-temperature protection
? Over-current protection
? Short-circuit protection
? Soft-start

The LTM4628IV#PBF is suitable for a wide range of applications, including industrial, automotive, and consumer electronics. It can be used in power supplies, battery chargers, and other power management systems. It is also suitable for powering FPGAs, ASICs, and other high-performance digital circuits.
