ADI LTC6421CUDC-20#PBF
Manufacturer No:
LTC6421CUDC-20#PBF
Manufacturer:
Package:

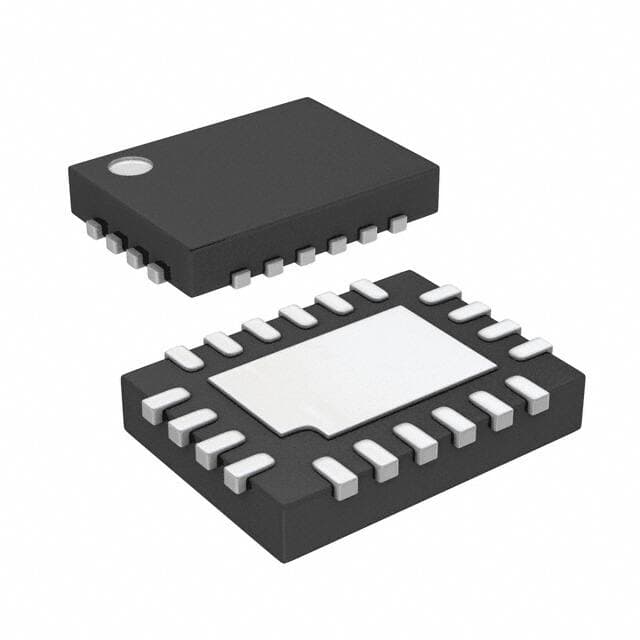

20-WFQFN Exposed Pad
Description:
0.5mm 3V 20 Amplifier LTC6421 20 Pin 3V 20-WFQFN Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LTC6421CUDC-20#PBF information
ADI LTC6421CUDC-20#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC6421CUDC-20#PBF.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 months ago)
- Factory Lead Time
- 16 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 20-WFQFN Exposed Pad
- Surface Mount
- YES
- Number of Pins
- 20
- Packaging
- Tube
- Published
- 2010
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 20
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Type
- ADC Driver
- Resistance
- 230Ohm
- Terminal Finish
- Matte Tin (Sn)
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Applications
- Data Acquisition
- Subcategory
- Operational Amplifier
- Technology
- CMOS
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Number of Functions
- 2
- Supply Voltage
- 3V
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- LTC6421
- Pin Count
- 20
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 3V
- Number of Elements
- 2
- Power Supplies
- 3V
- Temperature Grade
- COMMERCIAL
- Max Supply Voltage
- 3.5V
- Min Supply Voltage
- 2.85V
- Supply Current-Max
- 50mA
- Slew Rate
- 4500 V/?s
- Common Mode Rejection Ratio
- 45 dB
- Input Offset Voltage (Vos)
- 400?V
- Bandwidth
- 1.3 GHz
- Power Supply Rejection Ratio (PSRR)
- 55dB
- Gain
- 20 dB
- Nominal Gain Bandwidth Product
- 1.3 GHz
- Length
- 4mm
- Height Seated (Max)
- 0.8mm
Download datasheets and manufacturer documentation for ADI LTC6421CUDC-20#PBF.
Datasheets:
ConflictMineralStatement:
LTC6421CUDC-20#PBF Overview
For the purpose of storing this item, a package number of Tube is used.There is no doubt that this ADC Driver is a very good value for the price.This item has been dispatched with the 20-WFQFN Exposed Pad package.Mounting the part takes place in the direction of Surface Mount.Data Acquisition is its primary use.Part number LTC6421 corresponds to the base part number of the device.Using 2 functions, we can access high performance for amplification.It is estimated that there are 20 terminals in total, each of which has its own function.Under 260, the iron temperature should be controlled when the peak relow is being performed for the part.It contains 20 pins in total.Ideally, this amplifier should be supplied with a voltage of 3V to make it run properly.For your custom needs, this 20-pin amplifier is the perfect solution.In order to operate efficiently, the device can withstand temperatures as low as 0°C.A remarkable characteristic of this part is that it can run at a temperature as high as 70°C, which is extremely high.In the same way that other high-quality Operational Amplifiers do, it has a superb amplifying capacity.A maximum voltage of 3.5V is specified for the supply.At least 2.85V power should be provided.Using 3V, this device can be supplied.There is a requirement for 3V power supplies to power this part.Resistance 230Ohm is specified for this amplifier.Amplification can be provided by 2 basic elements.There should be a monitoring of the supply current and it should not be allowed to exceed 50mA.
LTC6421CUDC-20#PBF Features
LTC6421CUDC-20#PBF Applications
There are a lot of Linear Technology/Analog Devices
LTC6421CUDC-20#PBF Special Purpose Amplifiers applications.
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
- Signal operation
- Video and image computer boards
- Medical instruments
- Television broadcasting equipment
- Displayers for aircraft and air transportation control systems
