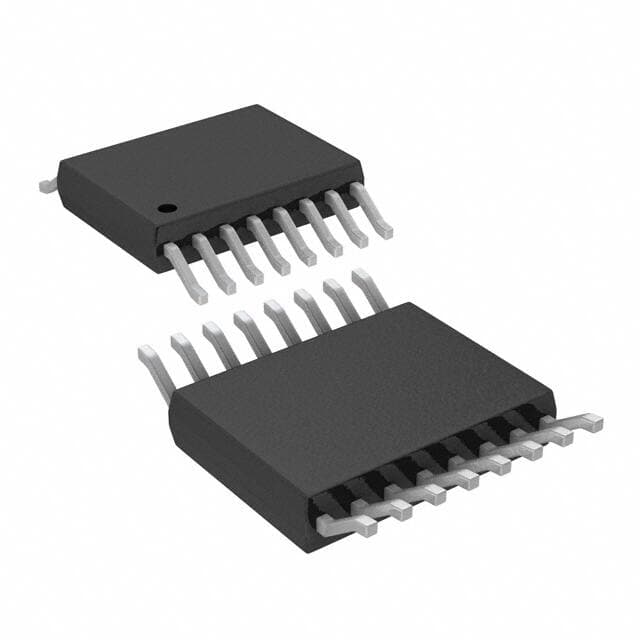

ADI LTC6257IMS#PBF

Manufacturer No:

LTC6257IMS#PBF

Manufacturer:

ADI

Package:

16-TFSOP (0.118, 3.00mm Width)

Description:

5nA 100 dB Instrumentational OP Amps 0.06μA 1.8V~5.25V ±0.9V~2.625V LTC6257 16 Pins 16-TFSOP (0.118, 3.00mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC6257IMS#PBF information

ADI LTC6257IMS#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC6257IMS#PBF.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
16-TFSOP (0.118, 3.00mm Width)

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tube

Published
2013

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Subcategory
Operational Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
4

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LTC6257

Pin Count
16

Qualification Status
Not Qualified

Output Type
Rail-to-Rail

Power Supplies
1.8/5V

Number of Circuits
4

Current - Supply
65μA

Slew Rate
1.8V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
General Purpose

Common Mode Rejection Ratio
100 dB

Current - Input Bias
5nA

Voltage - Supply, Single/Dual (±)
1.8V~5.25V ±0.9V~2.625V

Gain Bandwidth Product
6.5MHz

Unity Gain BW-Nom
6500 kHz

Average Bias Current-Max (IIB)
0.06μA

Low-Offset
YES

Frequency Compensation
YES

Supply Voltage Limit-Max
5.5V

Voltage - Input Offset
100μV

Micropower
YES

-3db Bandwidth
4.5MHz

Bias Current-Max (IIB) @25C
0.05μA

Voltage Gain-Min
5000

Height Seated (Max)
1.1mm

Download datasheets and manufacturer documentation for ADI LTC6257IMS#PBF.

Datasheets:

lineartechnologyanalogdevices-ltc6256cdctrmpbf-datasheets-7057.pdf

LTC6257IMS#PBF Overview

A 16-TFSOP (0.118, 3.00mm Width) case is used to package the op amp. General Purpose-type instrumentation amplifiers are used in this application. The case in which buffer amplifier is delivered is called a Tube case. It is estimated that there will be 16 terminations in the next few months. There are a total of 16 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 5V volts. It should be noted that this op amp is a type of Operational Amplifier device. It is recommended that this electronic component be mounted using the Surface Mount mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -40°C~85°C . On this instrumentation amplifier, there are 4 circuits that are connected together. One of the advantages of this op amp is that it outputs Rail-to-Rail signals, which is one of its many advantages. As a recommendation, this electronic component should be used with a power supply that can deliver 65μA. There is a minimum voltage gain of 5000 that this buffer op amp is capable of conducting.

LTC6257IMS#PBF Features

16 Pins
supply voltage of 5V
Output Type: Rail-to-Rail

LTC6257IMS#PBF Applications

There are a lot of Linear Technology/Analog Devices
LTC6257IMS#PBF Instrumentational OP Amps applications.

Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
