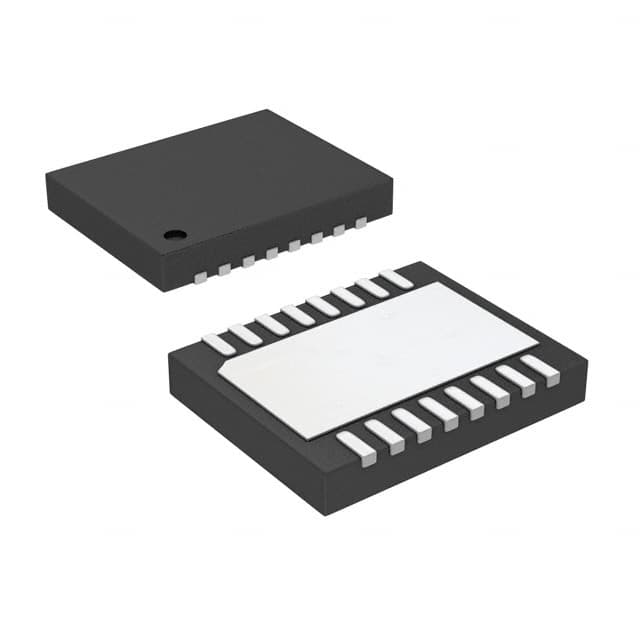

ADI LTC4353IDE#PBF

Manufacturer No:

LTC4353IDE#PBF

Manufacturer:

ADI

Package:

16-WFDFN Exposed Pad

Description:

12V 0.45mm PMIC LTC4353 12V 16-WFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC4353IDE#PBF information

ADI LTC4353IDE#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC4353IDE#PBF.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
16-WFDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tube

Published
2012

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Type
Current Sharing Controller

Terminal Finish
Matte Tin (Sn)

Applications
Redundant Power Supplies, Telecom Infrastructure

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Technology
CMOS

Voltage - Supply
2.9V~18V

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.45mm

Base Part Number
LTC4353

JESD-30 Code
R-PDSO-N16

Supply Voltage-Max (Vsup)
18V

Power Supplies
12V

Supply Voltage-Min (Vsup)
2.9V

Number of Channels
2

Adjustable Threshold
NO

Current - Supply
1.5mA

FET Type
N-Channel

Supply Current-Max (Isup)
2.5mA

Ratio - Input:Output
2:2

Internal Switch(s)
No

Delay Time - OFF
300ns

Delay Time - ON
400ns

Length
4mm

Height Seated (Max)
0.8mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC4353IDE#PBF.

Datasheets:

lineartechnologyanalogdevices-ltc4353cdetrpbf-datasheets-0614.pdf

LTC4353IDE#PBF Overview

The case is 16-WFDFN Exposed Pad-shaped. Tube cases are suitable for packing the part. Surface Mount is used to mount the part. The voltage is set to 2.9V~18V. The minimum operating temperature of this component must not be -40°C~85°C. It fits the Redundant Power Supplies, Telecom Infrastructure-connected component. Device Current Sharing Controller belongs to the Current Sharing Controller category. N-Channel is the type of FET. The part is available with 16 terminations. There are 16 pins on it. LTC4353 is the basis for the part. Performance is delivered by 12V. Run the supply current of the part at 1.5mA. Part of the Power Management Circuits family. In order to operate this part properly, the minimum supply voltage (Vsup) should be at least 2.9V. A maximum voltage supply (Vsup) is reached at 18V. Under 2.5mA, the supply current (Isup) should flow. Voltage can be delivered at 12V by it.

LTC4353IDE#PBF Features

in a 16-WFDFN Exposed Pad case
FET Type: N-Channel
16 terminations

LTC4353IDE#PBF Applications

There are a lot of Linear Technology/Analog Devices
LTC4353IDE#PBF Ideal Diode controller applications.

PDAs
Digital Cameras
Modems
Cell phones
Digital Radios
MP3 Players
Active OR-ing of Redundant (N+1) Power Supplies
Automotive battery protection
ADAS domain controller
Camera ECU
