ADI LTC4278CDKD#PBF
Manufacturer No:
LTC4278CDKD#PBF
Manufacturer:
Package:

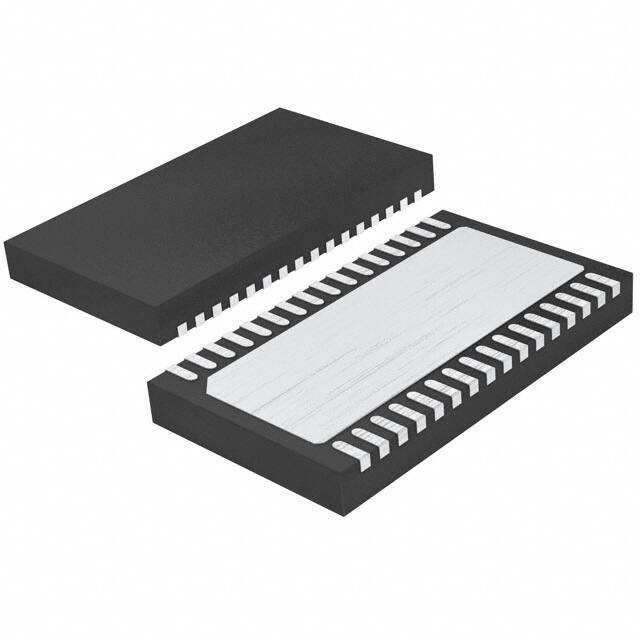

32-WFDFN Exposed Pad
Description:
Tube 32-WFDFN Exposed Pad Controller (PD), DC/DC 1 0°C~70°C 37.2V~60V LTC4278 32 DUAL 1
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LTC4278CDKD#PBF information
ADI LTC4278CDKD#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC4278CDKD#PBF.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 2 weeks ago)
- Factory Lead Time
- 8 Weeks
- Package / Case
- 32-WFDFN Exposed Pad
- Surface Mount
- YES
- Number of Pins
- 32
- Operating Temperature
- 0°C~70°C
- Packaging
- Tube
- Published
- 2011
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 32
- ECCN Code
- EAR99
- Type
- Controller (PD), DC/DC
- Terminal Finish
- Matte Tin (Sn)
- Subcategory
- Switching Regulator or Controllers
- Technology
- CMOS
- Voltage - Supply
- 37.2V~60V
- Terminal Position
- DUAL
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Terminal Pitch
- 0.4mm
- Frequency
- 100kHz
- Time@Peak Reflow Temperature-Max (s)
- 30
- Pin Count
- 32
- Input Voltage-Nom
- 14V
- Number of Channels
- 1
- Nominal Supply Current
- 1.35mA
- Power - Max
- 25.5W
- Current - Supply
- 1.35mA Max
- Control Mode
- CURRENT-MODE
- Control Technique
- PULSE WIDTH MODULATION
- Nominal Input Voltage
- 60V
- Switcher Configuration
- SINGLE
- Internal Switch(s)
- Yes
- Standards
- 802.3at (PoE+), 802.3af (PoE)
- Length
- 7mm
- Height Seated (Max)
- 0.8mm
- Width
- 4mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ADI LTC4278CDKD#PBF.
ConflictMineralStatement:
LTC4278CDKD#PBF Overview
PoE controller is part of the Tube package, which is included in the download.There is a way in which it is packaged which is referred to as 32-WFDFN Exposed Pad.As far as this application is concerned, it is a Controller (PD), DC/DC type PoE controller that is being used.There is an increase in the number of channels strong/weak as follows: 1.As a precaution, the operating temperature of this Po E controller is kept at 0°C~70°C in order to maintain its reliability.In order to operate this electrical Po E controller, it requires a voltage of 37.2V~60V as a supply voltage.Using the base part number of a part LTC4278, it is possible to determine its Po E controllers.Termination with a 32 termination involves terminating a transmission line with a power over ethernet controller of matching impedance.This electrical ethernet over power controller has a maximum power of 25.5W Watts, which is the maximum power it can deliver.In addition, it comes with a 32 pin count.Taking into account the supply current, 1.35mA Max is the value.Switching Regulator or Controllers includes this Po E controller in its package.In order to make it work, it has 32 pins on it.There is a peak reflow temperature of this electric ethernet power controller (Cel) of 260 degrees Celsius.In this electric PoE ethernet controller, 100kHz frequencies are used to operate it.
LTC4278CDKD#PBF Features
Tube package
32 pin count
32 pins
LTC4278CDKD#PBF Applications
There are a lot of Linear Technology/Analog Devices
LTC4278CDKD#PBF Power Over Ethernet (PoE) Controllers applications.
- Wireless Access Points
- Security Cameras
- Power over Ethernet
- PoE powered device appliances
- High power (>12.95 W) powered devices
- IEEE 802.3bt (Draft) Compliant Devices
- Lighting
- Power Modules
- Dual Signature PD/Forced UPOE
- 4PPOE
