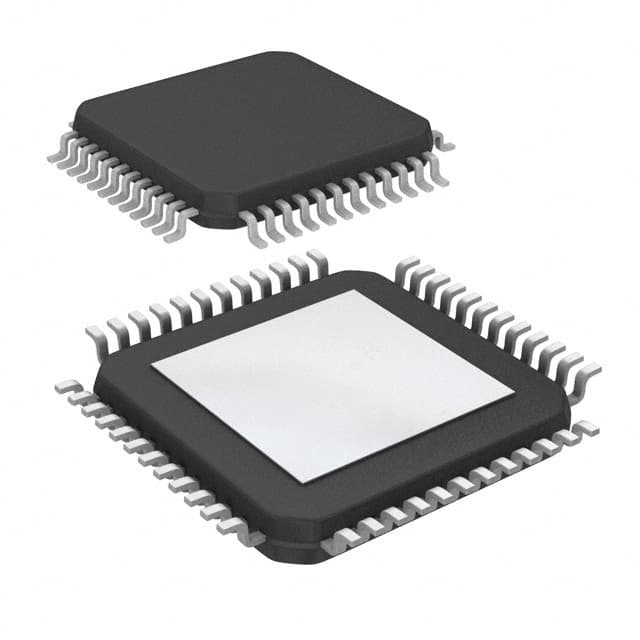

ADI LTC3300HLXE-1#PBF

Manufacturer No:

LTC3300HLXE-1#PBF

Manufacturer:

ADI

Package:

48-LQFP Exposed Pad

Description:

3.6/21.6V -40°C~150°C TJ 6 Channel QUAD Battery Management ICs LTC3300 1 ~ 12 Cell Multi-Chemistry 48-LQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC3300HLXE-1#PBF information

ADI LTC3300HLXE-1#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC3300HLXE-1#PBF.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
48-LQFP Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tray

Published
2014

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LTC3300

JESD-30 Code
S-PQFP-G48

Function
Battery Balancer

Supply Voltage-Max (Vsup)
5.3V

Power Supplies
3.6/21.6V

Supply Voltage-Min (Vsup)
1.8V

Number of Channels
6

Interface
Serial

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Adjustable Threshold
YES

Supply Current-Max (Isup)
1.11mA

Fault Protection
Over Temperature, Over Voltage, Short Circuit

Battery Chemistry
Multi-Chemistry

Number of Cells
1 ~ 12

Length
7mm

Height Seated (Max)
1.6mm

Width
7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC3300HLXE-1#PBF.

LTC3300HLXE-1#PBF Overview

It is appropriate for the 48-LQFP Exposed Pad package. POWER SUPPLY MANAGEMENT CIRCUIT is the analog IC that this power IC employs. There are 6 channels available. It's packaged in a Tray case. This electrical component is from the Power Management Circuits family. This electronic component is mounted in the way of Surface Mount. It is able to deliver the Battery Balancer functions. It is best for the electric part to operate temperature at the range of -40°C~150°C TJ to deliver its performance. The battery chemistry of this electronic component includes Multi-Chemistry. It is powered by a 3.6/21.6V volts. It is based on LTC3300 family. The maximal supply voltage (Vsup) reaches 5.3V. The Vsup (supply voltage) must be greater than 1.8V. The maximum supply current (Isup) must not exceed 1.11mA.

LTC3300HLXE-1#PBF Features

Available in 48-LQFP Exposed Pad Package
Mounting Type: Surface Mount
Battery Chemistry : Multi-Chemistry
Supply Voltage-Max (Vsup) : 5.3V

LTC3300HLXE-1#PBF Applications

There are a lot of Linear Technology/Analog Devices
LTC3300HLXE-1#PBF Battery Management ICs applications.

Electric vehicles
Electric cars
Trucks
Non-road type vehicles
Golf carts
Electric-powered machinery
Fork lifts
Grid power infrastructure
Cell phone towers
A/C power substations
