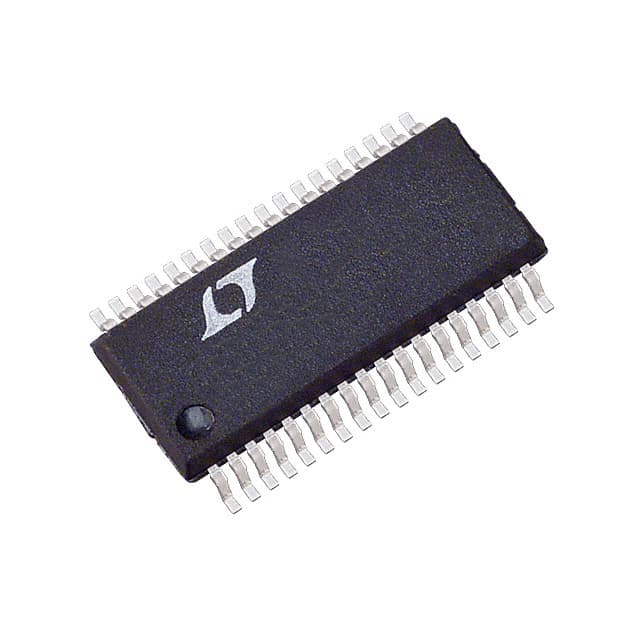

ADI LTC1479IG

Manufacturer No:

LTC1479IG

Manufacturer:

ADI

Package:

36-SSOP (0.209, 5.30mm Width)

Description:

6/28V -40°C~85°C TA 3 Channel DUAL Battery Management ICs 25V LTC1479 Multi-Chemistry 36-SSOP (0.209, 5.30mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC1479IG information

ADI LTC1479IG technical specifications, attributes, parameters and parts with similar specifications to ADI LTC1479IG.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
36-SSOP (0.209, 5.30mm Width)

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Published
1997

JESD-609 Code
e0

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
36

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.39.00.01

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
235

Supply Voltage
25V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
20

Base Part Number
LTC1479

JESD-30 Code
R-PDSO-G36

Function
Power Management

Qualification Status
Not Qualified

Power Supplies
6/28V

Supply Voltage-Min (Vsup)
6V

Number of Channels
3

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold
NO

Supply Current-Max (Isup)
0.5mA

Fault Protection
Over Current

Battery Chemistry
Multi-Chemistry

Length
12.8mm

Height Seated (Max)
1.99mm

Width
5.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC1479IG.

LTC1479IG Overview

The 36-SSOP (0.209, 5.30mm Width) package is suitable for battery instrument. A system battery like this uses an analog IC named POWER SUPPLY SUPPORT CIRCUIT. We have 3 channels available. Tube is the case number of the package. In this case, this electrical part is mounted in the way of Surface Mount. As far as the Power Management functions are concerned, it can be delivered. Temperatures in the -40°C~85°C TA range are ideal for this electronic part. Chemistries for this electrical part are Multi-Chemistry. The battery protector ic is powered by a volt of 6/28V. You should leave this transceiver ic set to 25V at all times. There is a use of the LTC1479 family. Voltage supply (Vsup) is 28V at maximum. Power supplies require voltages higher than 6V (Vsup). (Isup) must have a maximum current of 0.5mA.

LTC1479IG Features

Available in 36-SSOP (0.209, 5.30mm Width) Package
Mounting Type: Surface Mount
Battery Chemistry : Multi-Chemistry
operate supply voltage at the range of 25V
Supply Voltage-Max (Vsup) : 28V

LTC1479IG Applications

There are a lot of Linear Technology/Analog Devices
LTC1479IG Battery Management ICs applications.

A/C power substations
Internet infrastructure equipment
Aviation ground support systems
Tower communications
Weather stations
Distributed energy resources
Solar and wind-generating plants
Electric street sweepers
Shuttle robots
Robots
