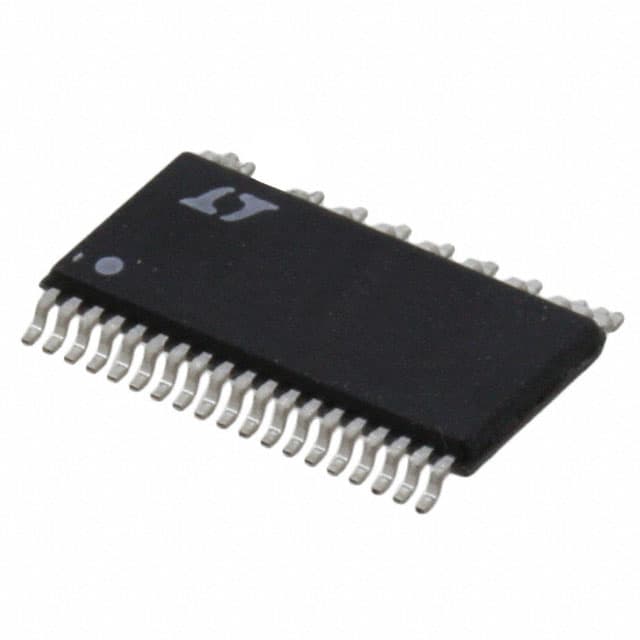

ADI LT8705EFE#TRPBF

Manufacturer No:

LT8705EFE#TRPBF

Manufacturer:

ADI

Package:

38-PowerTFSOP (0.173, 4.40mm Width), 31 Leads

Description:

38 Terminals 2.8V~80V LT8705 DC to DC converter IC SWITCHING CONTROLLER 2 Outputs 100kHz~400kHz Transistor Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT8705EFE#TRPBF information

ADI LT8705EFE#TRPBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT8705EFE#TRPBF.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
38-PowerTFSOP (0.173, 4.40mm Width), 31 Leads

Surface Mount
YES

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Published
2011

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
38

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
ALSO OPERATES IN ADJUSTABLE MODE FROM 1.3V TO 80V

Subcategory
Switching Regulator or Controllers

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LT8705

JESD-30 Code
R-PDSO-G38

Function
Step-Up/Step-Down

Qualification Status
Not Qualified

Output Voltage
6.35V

Output Type
Transistor Driver

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING CONTROLLER

Output Configuration
Positive

Voltage - Supply (Vcc/Vdd)
2.8V~80V

Control Features
Enable, Frequency Control, Soft Start

Topology
Buck-Boost

Control Mode
CURRENT-MODE

Frequency - Switching
100kHz~400kHz

Input Voltage (Max)
80V

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Length
9.7mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT8705EFE#TRPBF.

Datasheets:

lineartechnologyanalogdevices-lt8705efepbf-datasheets-9447.pdf

lineartechnologyanalogdevices-lt1162cswpbf-datasheets-1291.pdf

LT8705EFE#TRPBF Overview

With a 38-PowerTFSOP (0.173, 4.40mm Width), 31 Leads package, the switching controller is suitable for a wide range of applications. For 2 outputs, the dc motor controller is appropriate. A solid enclosure of Tape & Reel (TR) surrounds pmic. Transistor Driver dc switching's outputs (s) can be handled by it. This dc control has a supply voltage and operating voltage of 2.8V~80V. Worked in an dc switcher with a -40°C~125°C TJ rating. Switching can be done at 100kHz~400kHz with this switching controller. The Surface Mount value makes it suitable for general dc dc regulator. For efficient switching control, the dcdc regulator features Enable, Frequency Control, Soft Start. A SWITCHING CONTROLLER analog IC is connected to the switch converters. The switching converters's terminals (s) are designed at DUAL. An array of 38 terminations of dc switching. These dc dc converter ics adapt a variety of control techniques, including PULSE WIDTH MODULATION. The nominal DC switcher's voltage input is 12V. Search for "LT8705" to find other relevant dc to dc converter ics. In particular, switching converter is a type of Switching Regulator or Controllers. The test statistics indicate that DC regulator outputs a voltage of 6.35V. At most, the dc to dc regulator accepts 80V input voltage. To better satisfy the need, DC to DC voltage regulator has a value of ALSO OPERATES IN ADJUSTABLE MODE FROM 1.3V TO 80V.

LT8705EFE#TRPBF Features

Transistor Driver Outputs
Switching Frequency: 100kHz~400kHz
Enable, Frequency Control, Soft Start
PULSE WIDTH MODULATION
ALSO OPERATES IN ADJUSTABLE MODE FROM 1.3V TO 80V

LT8705EFE#TRPBF Applications

There are a lot of Linear Technology/Analog Devices
LT8705EFE#TRPBF DC to DC converter applications.

Servo drive system
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
