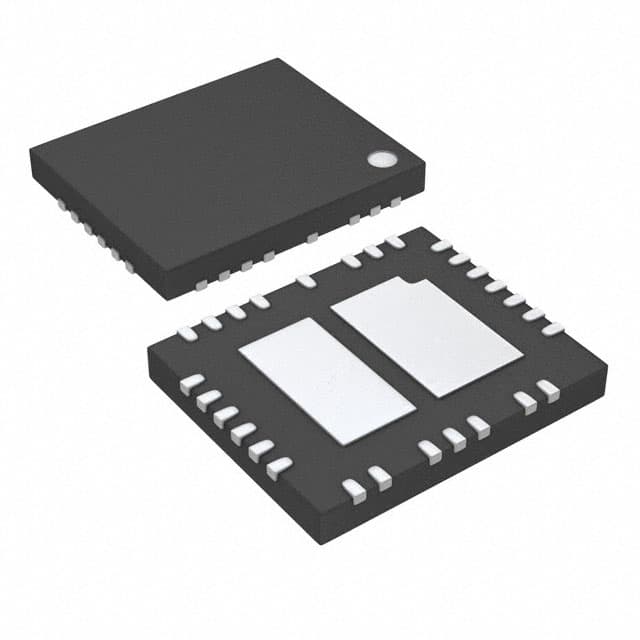

ADI LT3957AIUHE#PBF
Manufacturer No:
LT3957AIUHE#PBF
Manufacturer:
Package:
36-WFQFN, 28 Leads, Exposed Pad
Description:
38 Terminals 3V 28-Pin LT3957 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 100kHz~1MHz Tube 5A Switch 36-WFQFN, 28 Leads, Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LT3957AIUHE#PBF information
ADI LT3957AIUHE#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT3957AIUHE#PBF.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 months ago)
- Factory Lead Time
- 26 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 36-WFQFN, 28 Leads, Exposed Pad
- Surface Mount
- YES
- Number of Pins
- 28
- Operating Temperature
- -40°C~125°C TJ
- Packaging
- Tube
- Published
- 2008
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 38
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Subcategory
- Switching Regulator or Controllers
- Technology
- BIPOLAR
- Terminal Position
- QUAD
- Terminal Pitch
- 0.5mm
- Base Part Number
- LT3957
- JESD-30 Code
- R-PQCC-N38
- Function
- Step-Up, Step-Up/Step-Down
- Number of Outputs
- 1
- Output Voltage
- 40V
- Voltage - Input (Min)
- 3V
- Input Voltage-Nom
- 24V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive or Negative
- Current - Output
- 5A Switch
- Max Output Voltage
- 40V
- Voltage - Output (Min/Fixed)
- 1.6V
- Topology
- Boost, Cuk, Flyback, SEPIC
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 100kHz~1MHz
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- No
- Min Output Voltage
- 1.6V
- Voltage - Output (Max)
- 40V Switch
- Length
- 6mm
- Height Seated (Max)
- 0.8mm
- Width
- 5mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ADI LT3957AIUHE#PBF.
Datasheets:
ConflictMineralStatement:
LT3957AIUHE#PBF Overview
It uses the Tube package in order to optimize the performance of this voltage regulator. During the development of this harley voltage regulator, 38 terminations were made. A SWITCHING REGULATOR type of analog IC is equipped with this regulator voltage, which is the type of analog IC that is used in it. The harley voltage regulator is available as a 36-WFQFN, 28 Leads, Exposed Pad package to save space. The voltage regulator is configured with 1 outputs. As you can see, this DC DC switching regulator generates Adjustable output on its output pins. A Surface Mount mounting is required for this switching regulator. Voltage regulators should be operated at -40°C~125°C TJ temperature while operating. DC-DC switching regulators reach 100kHz~1MHz switching frequencies. Despite its low input voltage, this voltage regulator can operate. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 1.6V. Featuring a 5A Switch output current, dc to dc voltage regulator offers maximum design flexibility. For operation, voltage regulator provides a nominal input voltage of 24V. The regulator voltage that you are looking at belongs to the subcategory Switching Regulator or Controllers. There is a DC/DC regulator in this family that belongs to the LT3957 family. At 40V volts, voltage regulator can provide voltage. To operate the voltage regulator 12v, 28 pins are required. The output voltage of this voltage regulator 12v should at least be set at 1.6V volts at all times. By using 40V Switch as the maximum output voltage, adjusting voltage regulator is easy to operate. A maximum voltage of 40V can be obtained from the regulator voltage.
