ADI LT3797EUKG#PBF
ADI LT3797EUKG#PBF

ADI LT3797EUKG#PBF

Manufacturer No:

LT3797EUKG#PBF

Manufacturer:

ADI

Package:

52-WFQFN Exposed Pad

Description:

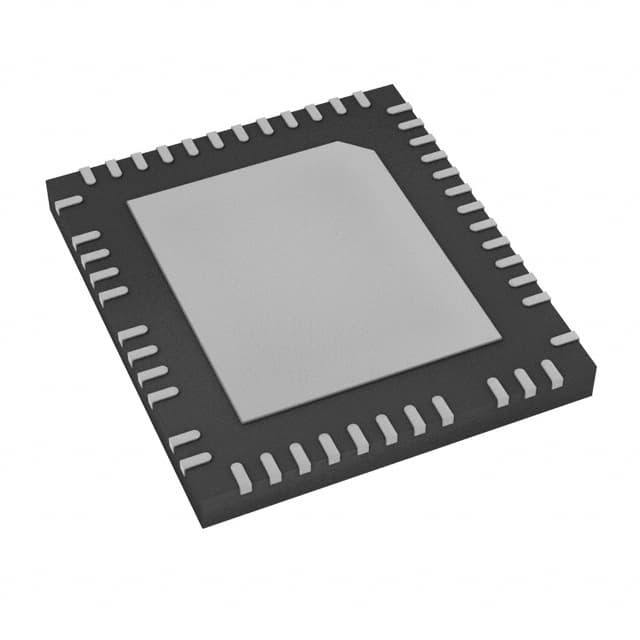

0.5mm PMIC LT3797 52 Pin 100kHz~1MHz 24V 52-WFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT3797EUKG#PBF information

ADI LT3797EUKG#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT3797EUKG#PBF.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 4 months ago)
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 52-WFQFN Exposed Pad
  • Number of Pins
  • 52
  • Operating Temperature
  • -40°C~125°C TA
  • Packaging
  • Tube
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 52
  • ECCN Code
  • EAR99
  • Type
  • DC DC Controller
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • Automotive, Lighting
  • Terminal Position
  • QUAD
  • Number of Functions
  • 1
  • Supply Voltage
  • 24V
  • Terminal Pitch
  • 0.5mm
  • Frequency
  • 100kHz~1MHz
  • Base Part Number
  • LT3797
  • Pin Count
  • 52
  • Number of Outputs
  • 3
  • Max Supply Voltage
  • 40V
  • Topology
  • Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
  • Output Polarity
  • TRUE
  • Input Characteristics
  • STANDARD
  • Internal Switch(s)
  • No
  • Dimming
  • Analog, PWM
  • Number of Segments
  • 10
  • Voltage - Supply (Min)
  • 2.5V
  • Multiplexed Display Capability
  • NO
  • Length
  • 8mm
  • Height Seated (Max)
  • 0.8mm
  • Width
  • 7mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT3797EUKG#PBF.

Datasheets:

ConflictMineralStatement:

LT3797EUKG#PBF Overview


As a result of its 52-WFQFN Exposed Pad package, it helps to save board space on the board. It has 3 outputs for LED drivers.We are using Surface Mount as the mounting method.With high efficiency, it emerges as a DC DC Controller.It is possible for the led driver ic to function normally at -40°C~125°C TA.It is clear that Automotive, Lighting will benefit from the program.Using the frequency of 100kHz~1MHz, it operates.In order for it to operate, it has 52 terminations.The base is configured with 52 pins.If the voltage supply is lower than 2.5V, undetermined failures may occur.There are 10 segments in it.This is mounted by Surface Mount.You can find this LED driver under the base part number LT3797.40V is an acceptable maximum value for the supply voltage.There are 52 pins on this device.

LT3797EUKG#PBF Features


Available in the 52-WFQFN Exposed Pad package
Operating temperature of -40°C~125°C TA
Frequency of 100kHz~1MHz
Supply voltage of 24V


LT3797EUKG#PBF Applications


There are a lot of Linear Technology/Analog Devices
LT3797EUKG#PBF LED Driver ICs applications.


  • High-end retail lighting
  • Medical surgery lighting
  • Replacement lamps
  • Panel lighting
  • Down lights
  • Linear fluorescent
  • A- lamps
  • General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
  • Industrial LED Lighting: Image Recognition Devices
  • Stage Lighting and Signage
