ADI LT3746EUHH#PBF

Manufacturer No:

LT3746EUHH#PBF

Manufacturer:

ADI

Package:

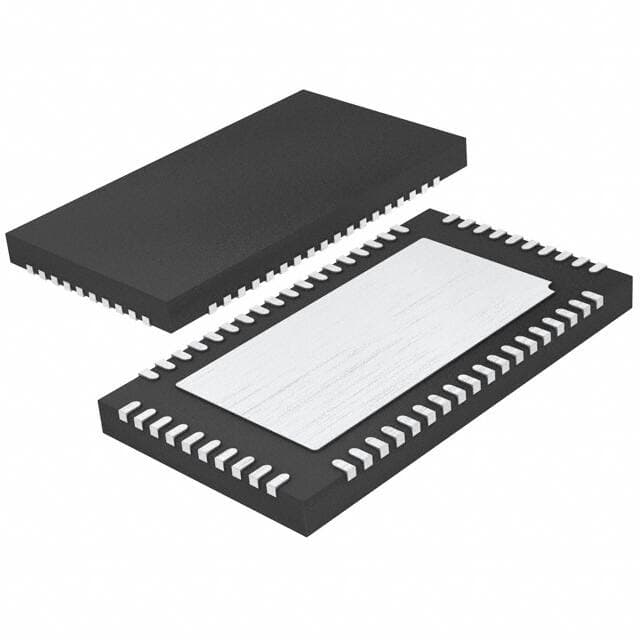

56-WFQFN Exposed Pad

Description:

3.3V 0.4mm PMIC LT3746 56 Pin 205Hz~1.05MHz 3.3V 56-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT3746EUHH#PBF information

ADI LT3746EUHH#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT3746EUHH#PBF.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
56-WFQFN Exposed Pad

Surface Mount
YES

Number of Pins
56

Operating Temperature
-40°C~125°C TJ

Packaging
Tube

Published
2013

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
56

ECCN Code
EAR99

Type
DC DC Controller

Terminal Finish
Matte Tin (Sn)

Applications
Backlight, Signage

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Technology
BIPOLAR

Terminal Position
QUAD

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.4mm

Base Part Number
LT3746

Pin Count
56

Number of Outputs
32

Power Supplies
3.3V

Max Supply Voltage
55V

Min Supply Voltage
6V

Nominal Supply Current
3.8mA

Topology
Step-Down (Buck)

Min Input Voltage
6V

Current - Output / Channel
30mA

Internal Switch(s)
No

fmax-Min
30 MHz

Dimming
PWM

Supply Voltage1-Nom
24V

Number of Segments
18

Multiplexed Display Capability
NO

Data Input Mode
SERIAL

Length
9mm

Height Seated (Max)
0.8mm

Width
5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ADI LT3746EUHH#PBF.

Datasheets:

lineartechnologyanalogdevices-lt3746euhhpbf-datasheets-7730.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

LT3746EUHH#PBF Overview

Board space is saved by its 56-WFQFN Exposed Pad package.This LED driver has 32 outputs.Surface Mount is used for mounting.This emerges as a DC DC Controller with high efficiency and reliability.The led light driver is capable of working normally at -40°C~125°C TJ.There are considerable benefits for Backlight, Signage.Based on the frequency of 205Hz~1.05MHz, it operates.It operates with 56 terminations.It is configured with 56 pins as its base.It consists of 18 segments.The base part number for this LED driver is LT3746.It is acceptable to have a maximum voltage of 55V.There are 56 pins on it.According to its characteristics, it is also classified into Display Drivers.The minimal input voltage is 6V.For maximum efficiency, it requires a minimal supply voltage of 6V.

LT3746EUHH#PBF Features

Available in the 56-WFQFN Exposed Pad package
Operating temperature of -40°C~125°C TJ
Frequency of 205Hz~1.05MHz
Supply voltage of 3.3V

LT3746EUHH#PBF Applications

There are a lot of Linear Technology/Analog Devices
LT3746EUHH#PBF LED Driver ICs applications.

Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
