ADI LT3686AEMSE#PBF

Manufacturer No:

LT3686AEMSE#PBF

Manufacturer:

ADI

Package:

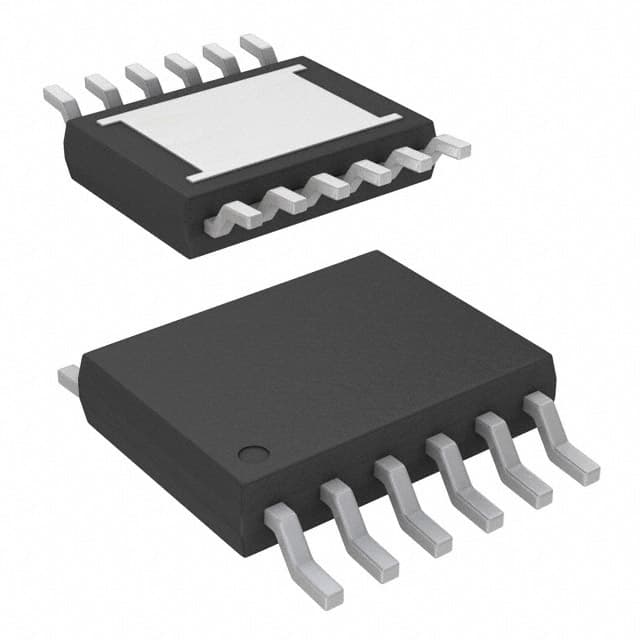

12-TSSOP (0.118, 3.00mm Width) Exposed Pad

Description:

12 Terminals 3.6V 12-Pin LT3686 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 300kHz~2.5MHz Tube 1.2A 12-TSSOP (0.118, 3.00mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT3686AEMSE#PBF information

ADI LT3686AEMSE#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT3686AEMSE#PBF.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 4 weeks ago)

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
12-TSSOP (0.118, 3.00mm Width) Exposed Pad

Surface Mount
YES

Number of Pins
12

Operating Temperature
-40°C~125°C TJ

Packaging
Tube

Published
2011

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Subcategory
Switching Regulator or Controllers

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Terminal Pitch
0.65mm

Base Part Number
LT3686

Function
Step-Down

Number of Outputs
1

Output Voltage
3.3V

Voltage - Input (Min)
3.6V

Input Voltage-Nom
10V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
1.2A

Max Output Voltage
37V

Voltage - Output (Min/Fixed)
0.8V

Topology
Buck

Control Mode
CURRENT-MODE

Frequency - Switching
300kHz~2.5MHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
No

Min Output Voltage
800mV

Length
4.039mm

Width
3mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT3686AEMSE#PBF.

Datasheets:

lineartechnologyanalogdevices-lt3686aemsepbf-datasheets-0965.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

LT3686AEMSE#PBF Overview

This harley voltage regulator utilizes the Tube package for optimized performance. There are 12 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. This harley voltage regulator is available in the 12-TSSOP (0.118, 3.00mm Width) Exposed Pad package for the purpose of space saving. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Adjustable output on its output pins. This voltage regulator 12v fits the Surface Mount mounting. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~125°C TJ. The switching frequency of this DC-DC switching regulator reaches 300kHz~2.5MHz. This voltage regulator is able to operate with the minimal input voltage of 3.6V. DC DC switching regulator's output voltage (Min/Fixed) amounts to 0.8V. The output current of 1.2A makes dc to dc voltage regulator feature maximum design flexibility. Voltage regulator is designed to provide a nominal input voltage of 10V to meet the operation requirements. This voltage regulator is included in the Switching Regulator or Controllers subcategory. This DC/DC regulator belongs to the LT3686 family. The adjusting voltage regulator's output voltage is maintain at 3.3V. 12 pins are used for switching regulator operation. The output voltage for this switching regulator should be kept at 800mV at least. It provides the adjusting voltage regulator's maximal output voltage of 37V.

LT3686AEMSE#PBF Features

1 outputs
12 pins

LT3686AEMSE#PBF Applications

There are a lot of Linear Technology/Analog Devices
LT3686AEMSE#PBF Voltage Regulators applications.

CNC system
Servo drive system
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
