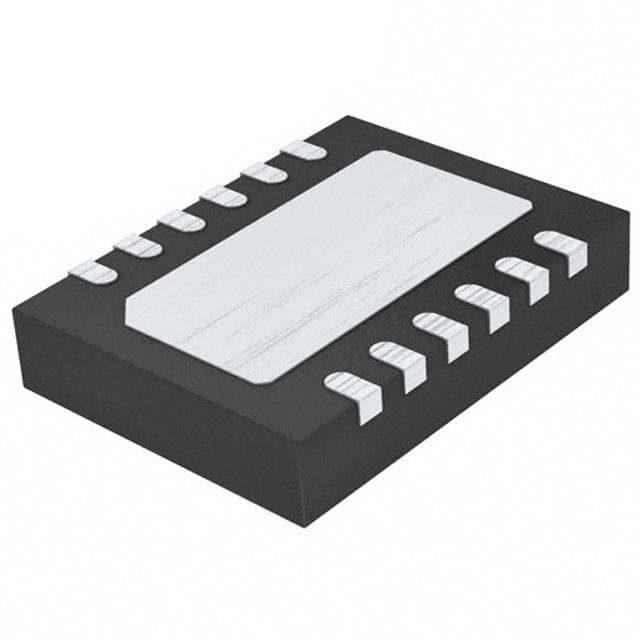

ADI LT1763IDE-5#PBF

Manufacturer No:

LT1763IDE-5#PBF

Manufacturer:

ADI

Package:

DFN

Description:

Fixed PMIC DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT1763IDE-5#PBF information

ADI LT1763IDE-5#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT1763IDE-5#PBF.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Package / Case
DFN

Number of Pins
12

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Number of Outputs
1

Output Type
Fixed

Polarity
Positive

Operating Supply Current
30μA

Current - Output
500mA

Voltage - Output
5V

Number of Regulators
1

Min Input Voltage
1.8V

Max Input Voltage
20V

Dropout Voltage
300mV

Power Supply Rejection Ratio (PSRR)
65dB

Min Current Limit
520mA

Nominal Output Voltage
5V

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT1763IDE-5#PBF.

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

LT1763IDE-5#PBF DESCRIPTION

The LTo1763 series are micropower low noise.low dropout regulators.The devices are capableofsupplying500mAof output current with a dropout voltage of300mVDesigned for use in battery powered systems the low 30uAquiescent current makes them an ideal choice.Quiescent current is well controlled: it does not rise in dropout as it does with many other regulators.

LT1763IDE-5#PBF FEATURES

Low Noise: 20uVs(10Hz to 100kHz) Output Current:500mA

Low Quiescent Current30uA

Wide Input Voltage Range:1.8Vto20V

Low Dropout Voltaqe:300mV

Very Low Shutdown Current:<1uA No Protection Diodes Needed

Fixed Output Voltages: 1.5V1.8V2.5V3V3.3V5V Adjustable Output from 1.22V to 20V Stable with 33uF Output Capacitor

Stable with Aluminum.Tantalum or Ceramic Capacitors

Reverse Battery Protection No Reverse Current

Over current and Over temperature Protected8-Lead SO and 12-Lead(4mmx3mm)DFN Packages

LT1763IDE-5#PBF APPLICATIONS

Cellular Phones

Battery-Powered Systems

Noise-Sensitive Instrumentation Systems
