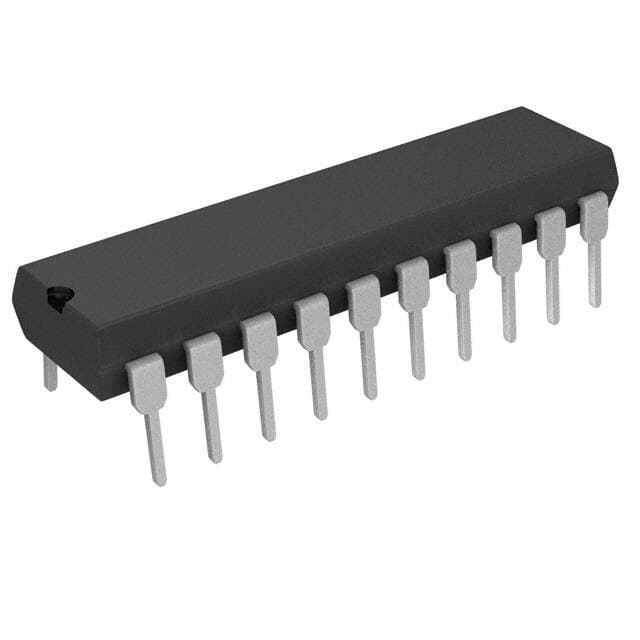

ADI LT1509CN#PBF

Manufacturer No:

LT1509CN#PBF

Manufacturer:

ADI

Package:

20-DIP (0.300, 7.62mm)

Description:

PMIC LT1509 20 Pin 115kHz 20-DIP (0.300, 7.62mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT1509CN#PBF information

ADI LT1509CN#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT1509CN#PBF.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
10 Weeks

Mounting Type
Through Hole

Package / Case
20-DIP (0.300, 7.62mm)

Surface Mount
NO

Number of Pins
20

Operating Temperature
0°C~100°C

Packaging
Tube

Published
1996

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Technology
BIPOLAR

Voltage - Supply
27V

Terminal Position
DUAL

Number of Functions
1

Frequency
115kHz

Base Part Number
LT1509

Pin Count
20

Number of Outputs
2

Output Voltage
7.5V

Input Voltage (Min)
11.5V

Output Current-Max
1.5A

Frequency - Switching
100kHz

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
19mA

Switcher Configuration
PUSH-PULL

Mode
Average Current

Height
3.68mm

Length
26.92mm

Width
6.48mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ADI LT1509CN#PBF.

Datasheets:

lineartechnologyanalogdevices-lt1509iswpbf-datasheets-7464.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

LT1509CN#PBF Overview

It comes in a 20-DIP (0.300, 7.62mm) package.It is packaged in a Tube way.The device's mounting type is Through Hole.It should operate with the voltage supply of 27V.The device is set to operate at 0°C~100°C.The part has other IC types such as POWER FACTOR CONTROLLER WITH POST REGULATOR.There are a number of 20 terminals on the gadget.The component's pin number remains 20.The device's best part has a number of LT1509 in it.The switching frequency is 100kHz.It has a sum of 20 pins.It can function with a minimum input voltage of 11.5V.With a frequency of 115kHz, it can continue to operate with good accuracy.It works in 1.5A output current at mostIsup, the maximum supply current, shall not be more than 19mA.There are numerous 2 outputs.It can be operated with the output of 7.5V.

LT1509CN#PBF Features

LT1509CN#PBF Applications

There are a lot of Linear Technology/Analog Devices
LT1509CN#PBF PFC PMICs applications.

Home electric appliance
Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
