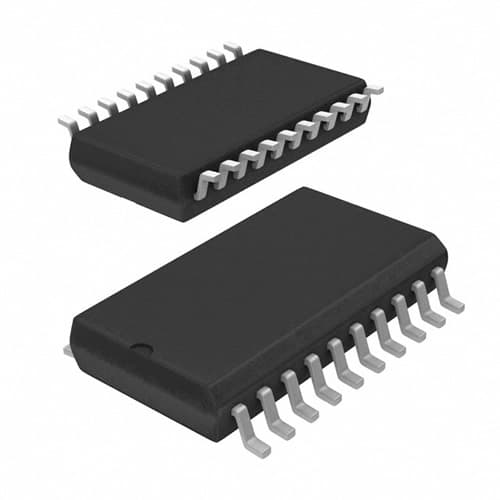

ADI LT1161ISW

Manufacturer No:

LT1161ISW

Manufacturer:

ADI

Package:

SOIC W

Description:

EAR99 Gate Drivers ICs 4 SOIC W

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT1161ISW information

ADI LT1161ISW technical specifications, attributes, parameters and parts with similar specifications to ADI LT1161ISW.

Type
Parameter

Package / Case
SOIC W

Surface Mount
YES

Number of Pins
20

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
235

Number of Functions
4

Supply Voltage
24V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
20

Operating Supply Voltage
24V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
48V

Min Supply Voltage
8V

Supply Current-Max
6.5mA

Turn On Delay Time
400 ?s

Output Polarity
TRUE

Input Characteristics
GATED

Interface IC Type
BUFFER OR INVERTER BASED MOSFET DRIVER

Number of Drivers
4

High Side Driver
YES

Length
12.8015mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI LT1161ISW.

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

LT1161ISW Overview

A higher level of flexibility is provided by its SOIC W package.4 drivers are incorporated for its configuration.The configuration is based on 20 terminations.When the device is designed, it has 20 pins.Specification is for 24V supply voltage operation.There is an interface IC called BUFFER OR INVERTER BASED MOSFET DRIVER that is employed in this device.There is a maximum value of 85°C for the allowable operating temperature.Operating temperatures must not exceed -40°C.For operation, the supply voltage of 48V is the maximum value.8V is the minimum voltage required to operate it.Mosfet gate drivers is recommended that you set the operating supply voltage to 24V.GATED represents its input.As long as the supply current stays below 6.5mA, the device will work properly.

LT1161ISW Features

4 drivers
20 pins

LT1161ISW Applications

There are a lot of Analog Devices, Inc.
LT1161ISW gate drivers applications.

RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
