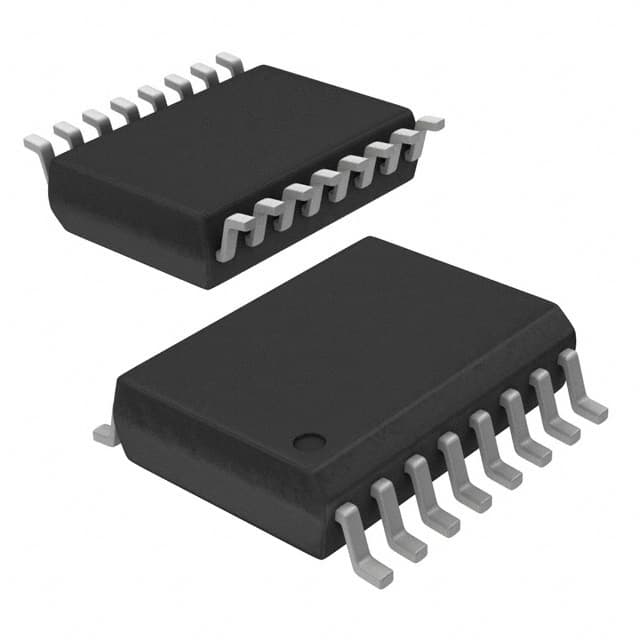

ADI LT1014DSW#TR
Manufacturer No:
LT1014DSW#TR
Manufacturer:
Package:
16-SOIC (0.295, 7.50mm Width)
Description:
15nA 113 dB Instrumentational OP Amps 0.038μA 4V~44V ±2V~22V LT1014 16 Pins 16-SOIC (0.295, 7.50mm Width)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LT1014DSW#TR information
ADI LT1014DSW#TR technical specifications, attributes, parameters and parts with similar specifications to ADI LT1014DSW#TR.
- Type
- Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 16-SOIC (0.295, 7.50mm Width)
- Surface Mount
- YES
- Operating Temperature
- 0°C~70°C
- Packaging
- Tape & Reel (TR)
- Published
- 2010
- JESD-609 Code
- e0
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Lead (Sn/Pb)
- Subcategory
- Operational Amplifier
- Packing Method
- TAPE AND REEL
- Technology
- BIPOLAR
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 235
- Number of Functions
- 4
- Supply Voltage
- 15V
- Terminal Pitch
- 1.27mm
- Reach Compliance Code
- not_compliant
- Time@Peak Reflow Temperature-Max (s)
- 20
- Base Part Number
- LT1014
- JESD-30 Code
- R-PDSO-G16
- Qualification Status
- Not Qualified
- Power Supplies
- 5/+-15V
- Number of Circuits
- 4
- Current - Supply
- 350μA
- Slew Rate
- 0.4V/μs
- Architecture
- VOLTAGE-FEEDBACK
- Amplifier Type
- General Purpose
- Common Mode Rejection Ratio
- 113 dB
- Current - Input Bias
- 15nA
- Voltage - Supply, Single/Dual (±)
- 4V~44V ±2V~22V
- Neg Supply Voltage-Nom (Vsup)
- -15V
- Average Bias Current-Max (IIB)
- 0.038μA
- Low-Offset
- NO
- Frequency Compensation
- YES
- Supply Voltage Limit-Max
- 22V
- Voltage - Input Offset
- 200μV
- Current - Output / Channel
- 20mA
- Micropower
- YES
- Bias Current-Max (IIB) @25C
- 0.05μA
- Neg Supply Voltage-Max (Vsup)
- -22V
- Voltage Gain-Min
- 700000
- Length
- 10.2995mm
Download datasheets and manufacturer documentation for ADI LT1014DSW#TR.
LT1014DSW#TR Overview
Packaged in a 16-SOIC (0.295, 7.50mm Width) case, the buffer op amp is ready to use. An op amp ic of the General Purpose type. The op amp is delivered to you in a Tape & Reel (TR) case. There is a growing number of terminations approaching the number of 16. The pins on this board total to 16 in total. I would like to remind you that this buffer op amp should be powered by an 15V battery. I would like to specify that this buffer amplifier belongs to the Operational Amplifier-type of devices. The mounting type that is recommended for this electrical part is Surface Mount. In relation to the operating temperature of this buffer op amp, it works well at an average of 0°C~70°C . During the manufacturing process, this buffer amplifier is divided into 4 circuits. For packing the buffer amplifier, the TAPE AND REEL-axis is adopted. As a result, it is recommended that a power supply of 350μA be used with this electronic part. It is necessary to keep in mind that this instrumentation amplifier is able to conduct a minimum voltage gain of 700000.
