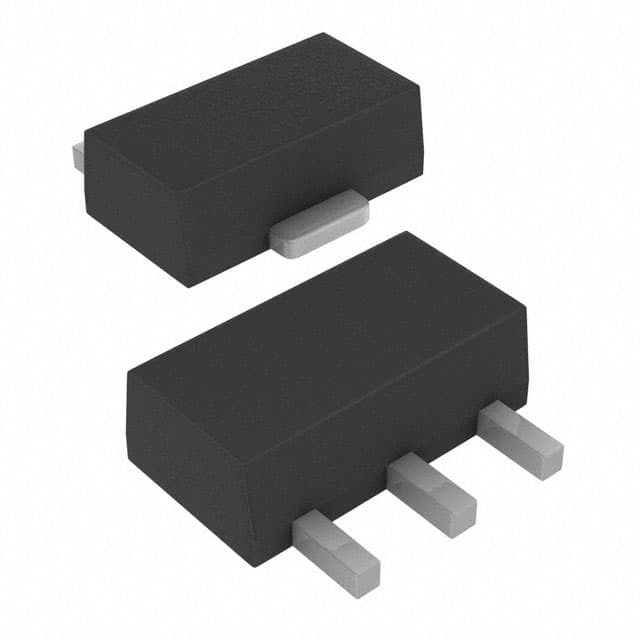

Microchip LR8N8-G

Manufacturer No:

LR8N8-G

Manufacturer:

Microchip

Package:

TO-243AA

Description:

HIGH VOLTAGE ADJUSTABLE 3-TERMINAL LINEAR REGULAR, 450V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LR8N8-G information

Microchip LR8N8-G technical specifications, attributes, parameters and parts with similar specifications to Microchip LR8N8-G.

Type
Parameter

+Vin min (V)
13.2

+Vin max (V)
450

Vout min (V)
1.2

Vout max (V)
440

Output Current (mA)
10

Dimming
N/A

Parallelable
N/A

Package
SOT-89, TO-92, TO-252

Features
Adj. Output, Overcurrent Limiting, OTP

Download datasheets and manufacturer documentation for Microchip LR8N8-G.

LR8 is a high voltage, low output current, adjustable linear regulator. It has a wide operating input voltage range of 13.2 - 450V. The output voltage can be adjusted from 1.20 - 440V provided that the input voltage is at least 12V greater than the output voltage. The output voltage can be adjusted by means of two external resistors R1 and R2 as shown in the typical application circuits. The LR8 regulates the voltage difference between VOUT and ADJ pins to a nominal value of 1.20V. The 1.20V is amplified by the external resistor ratio R1 and R2. An internal constant bias current of typically 10µA is connected to the ADJ pin. This increases VOUT by a constant voltage of 10µA times R2. The LR8 has current limiting and temperature limiting. The output current limit is typically 20mA and the minimum temperature limit is 125°C. An output short circuit current will therefore be limited to 20mA. When the junction temperature reaches its temperature limit, the output current and/or output voltage will decrease to keep the junction temperature from exceeding its temperature limit. For SMPS start-up circuit applications, the LR8 turns off when an external voltage greater than the output voltage of the LR8 is applied to VOUT of the LR8. To maintain stability, a bypass capacitor of 1.0µF or larger and a minimum DC output current of 500µA are required. The device is available in TO-243AA (SOT-89), TO-252 (D-PAK), and TO-92 packages.

13.2 - 450V input voltage range
Adjustable 1.20 - 440V output regulation
5% output voltage tolerance
Output current limiting
10µA typical ADJ current
Internal junction temperature limiting
