Manufacturer No:

LQA30B200C

Manufacturer:

Power Integrations

Package:

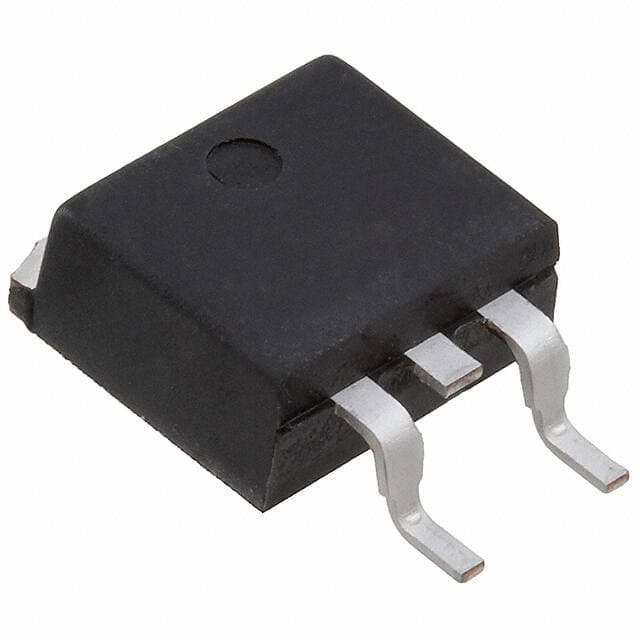

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Description:

Standard Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~150°C 15A 200V-DC 2-Element TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LQA30B200C information

Power Integrations LQA30B200C technical specifications, attributes, parameters and parts with similar specifications to Power Integrations LQA30B200C.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
  • Number of Pins
  • 3
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Qspeed?
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.10.00.80
  • Max Power Dissipation
  • 56.8W
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • JESD-30 Code
  • R-PSSO-G2
  • Number of Elements
  • 2
  • Element Configuration
  • Common Cathode
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 500?A @ 200V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.2V @ 15A
  • Forward Current
  • 30A
  • Max Reverse Leakage Current
  • 350A
  • Operating Temperature - Junction
  • -55°C~150°C
  • Max Surge Current
  • 130A
  • Application
  • EFFICIENCY
  • Max Reverse Voltage (DC)
  • 200V
  • Average Rectified Current
  • 15A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 16.5 ns
  • Max Repetitive Reverse Voltage (Vrrm)
  • 200V
  • Peak Non-Repetitive Surge Current
  • 350A
  • Diode Configuration
  • 1 Pair Common Cathode
  • Recovery Time
  • 16.5 ns
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations LQA30B200C.

Datasheets:

LQA30B200C Overview


Maintaining a surge current under 130A and not letting it exceed it is the key to preventing it.In this case, the forward voltage has to be set at 30A to operate the device.A semiconductor device's maximum reverse leakage current is 350A, which is the current created by its reverse bias.56.8W heat is generated at the highest rate from this electronic or electrical device (energy waste).

LQA30B200C Features




LQA30B200C Applications


There are a lot of Power Integrations
LQA30B200C applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
