NXP LPC8N04FHI24Z
NXP LPC8N04FHI24Z

NXP LPC8N04FHI24Z

Manufacturer No:

LPC8N04FHI24Z

Manufacturer:

NXP

Package:

24-VFQFN Exposed Pad

Description:

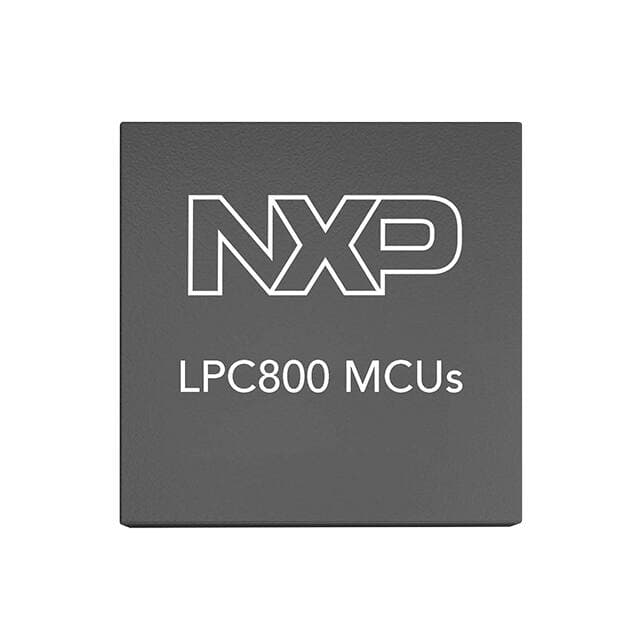

32KB 32K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller LPC8Nxx Series 24-VFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LPC8N04FHI24Z information

NXP LPC8N04FHI24Z technical specifications, attributes, parameters and parts with similar specifications to NXP LPC8N04FHI24Z.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 24-VFQFN Exposed Pad
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • LPC8Nxx
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Oscillator Type
  • Internal
  • Number of I/O
  • 12
  • Speed
  • 8MHz
  • RAM Size
  • 8K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 1.72V~3.6V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER, RISC
  • Core Processor
  • ARM® Cortex®-M0+
  • Peripherals
  • Brown-out Detect/Reset, POR, PWM, WDT
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit
  • Program Memory Size
  • 32KB 32K x 8
  • Connectivity
  • I2C, SPI
  • EEPROM Size
  • 4K x 8
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP LPC8N04FHI24Z.

Datasheets:

Environmental Information:

LPC8N04FHI24Z Description


The NXP LPC8N04 is an integrated circuit (IC) designed for a Cortex-M0+ MCU with an integrated NFC interface. For NFC-related applications, LPC8N04 delivers an efficient system solution with a minimum amount of external components.

Users of this IC have flexibility to develop their own customized solution thanks to the included ARM Cortex-M0+ processor. The LPC8N04 has a variety of capabilities for extremely low power consumption, including many power-down modes and a customizable CPU frequency of up to 8 MHz. The LPC8N04 can be programmed using the accepted methods in the industry for ARM Cortex-M0+ CPUs.



LPC8N04FHI24Z Features


  • Up to 12 General Purpose Input Output (GPIO) pins with configurable pull-up/pull-down resistors and repeater mode

  • GPIO pins which can be used as edge and level sensitive interrupt sources

  • High-current drivers/sinks (20 mA) on four GPIO pins

  • High-current drivers/sinks (20 mA) on two I2C-bus pins

  • Programmable WatchDog Timer (WDT)

  • ARM Cortex-M0+ processor running at frequencies of up to 8 MHz

  • ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)

  • ARM Serial Wire Debug (SWD)

  • System tick timer

  • IC reset input

  • Support for 1.72 V to 3.6 V external voltages

  • The LPC8N04 can also be powered from the NFC field

  • Activation via NFC possible

  • Integrated Power Management Unit (PMU) for versatile control of power consumption

  • Four reduced power modes for ARM Cortex-M0+: sleep, deep sleep, deep power-down and battery off



LPC8N04FHI24Z Applications


  • Configurable LED strip/christmas tree LEDs via NFC

  • Smart toy/interactive robot data logger

  • Buttonless/contactless control panel

  • Contactless diagnostic

  • NFC e-locker

  • Smart manufacturing

  • NFC OTA
