NXP LPC54114J256UK49Z
NXP LPC54114J256UK49Z

NXP LPC54114J256UK49Z

Manufacturer No:

LPC54114J256UK49Z

Manufacturer:

NXP

Package:

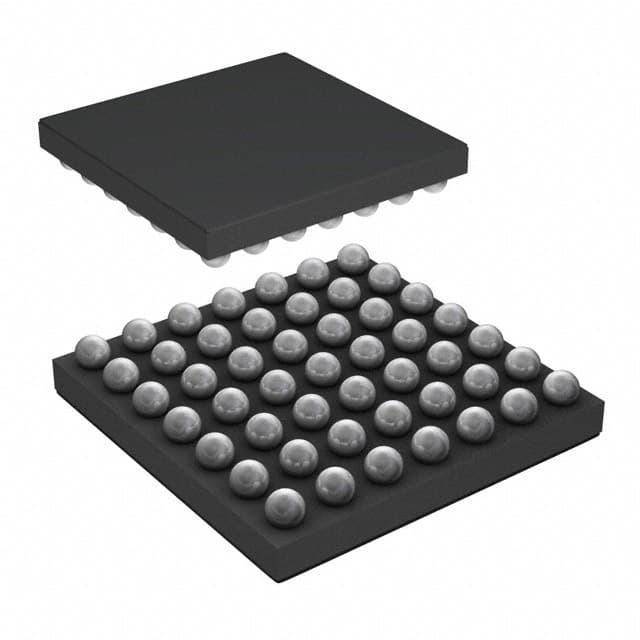

49-UFBGA, WLCSP

Description:

256KB 256K x 8 FLASH ARM® Cortex®-M4/M0+ 32-Bit Dual-Core Microcontroller LPC54100 Series 3.3V 49-UFBGA, WLCSP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LPC54114J256UK49Z information

NXP LPC54114J256UK49Z technical specifications, attributes, parameters and parts with similar specifications to NXP LPC54114J256UK49Z.

  • Type
  • Parameter
  • Factory Lead Time
  • 26 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 49-UFBGA, WLCSP
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~105°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • LPC54100
  • Published
  • 2010
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 49
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.4mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Supply Voltage-Min (Vsup)
  • 1.62V
  • Oscillator Type
  • Internal
  • Number of I/O
  • 39
  • Speed
  • 100MHz
  • RAM Size
  • 192K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 1.62V~3.6V
  • Core Processor
  • ARM® Cortex®-M4/M0+
  • Peripherals
  • Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
  • Clock Frequency
  • 25MHz
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit Dual-Core
  • Program Memory Size
  • 256KB 256K x 8
  • Connectivity
  • I2C, SPI, UART/USART, USB
  • Bit Size
  • 32
  • Data Converter
  • A/D 12x12b
  • Has ADC
  • YES
  • DMA Channels
  • YES
  • PWM Channels
  • YES
  • Length
  • 3.44mm
  • Width
  • 3.44mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP LPC54114J256UK49Z.

Datasheets:

Environmental Information:

LPC54114J256UK49Z Overview


The package is 49-UFBGA, WLCSP-shaped. There are 39 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 32-Bit Dual-Core core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~105°C TA are operated by this Microcontroller. It is part of the LPC54100 series of electrical components. Having a size of 256KB 256K x 8, Microcontroller has a program memory of X bytes. A ARM® Cortex®-M4/M0+ Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. IC Chip 49 has 49 terminations. 32-bits are used for its size. IC Chip has 3.3V volt supply outputs. With YES DMA channels, Microcontroller chip can handle large data transfers. Devices work in YES PWM channels. As far as its frequency goes, it operates according to a 25MHz clock.

LPC54114J256UK49Z Features


49-UFBGA, WLCSP package
Mounting type of Surface Mount


LPC54114J256UK49Z Applications


There are a lot of NXP USA Inc.
LPC54114J256UK49Z Microcontroller applications.


  • Instrument control
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
  • Kindle
  • Christmas lights
  • 3D printers
