NXP LPC1114JHN33/333E
NXP LPC1114JHN33/333E

NXP LPC1114JHN33/333E

Manufacturer No:

LPC1114JHN33/333E

Manufacturer:

NXP

Package:

32-VQFN Exposed Pad

Description:

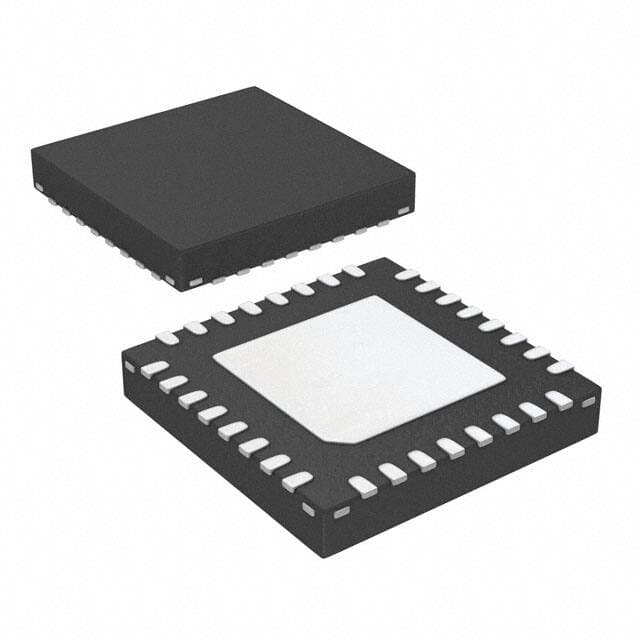

56KB 56K x 8 FLASH ARM® Cortex®-M0 32-Bit Microcontroller LPC1100XL Series 3.3V 32-VQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LPC1114JHN33/333E information

NXP LPC1114JHN33/333E technical specifications, attributes, parameters and parts with similar specifications to NXP LPC1114JHN33/333E.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 32-VQFN Exposed Pad
  • Surface Mount
  • YES
  • Data Converters
  • A/D 8x10b
  • Number of I/Os
  • 28
  • RAM(byte)
  • 8192
  • ROM(word)
  • 57344
  • Operating Temperature
  • -40°C~105°C TA
  • Packaging
  • Tray
  • Series
  • LPC1100XL
  • Published
  • 2010
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 33
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.65mm
  • Pin Count
  • 32
  • JESD-30 Code
  • S-PQCC-N32
  • Qualification Status
  • Not Qualified
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Power Supplies
  • 3.3V
  • Oscillator Type
  • Internal
  • Speed
  • 50MHz
  • RAM Size
  • 8K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 1.8V~3.6V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER, RISC
  • Core Processor
  • ARM® Cortex®-M0
  • Peripherals
  • Brown-out Detect/Reset, POR, WDT
  • Clock Frequency
  • 25MHz
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit
  • Program Memory Size
  • 56KB 56K x 8
  • Connectivity
  • I2C, SPI, UART/USART
  • Bit Size
  • 32
  • Has ADC
  • YES
  • DMA Channels
  • NO
  • PWM Channels
  • NO
  • CPU Family
  • CORTEX-M0
  • Length
  • 7mm
  • Width
  • 7mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP LPC1114JHN33/333E.

Datasheets:

Environmental Information:

LPC1114JHN33/333E Overview


Packaged in a 32-VQFN Exposed Pad format. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 32-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~105°C TA. A LPC1100XL series electrical component is used in this application. This program has a program memory of 56KB 56K x 8 bytes, which is the size of the program. With a ARM® Cortex®-M0 Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 33 terminations on the IC chip, which means there are 33 terminations on the integrated circuit chip. In addition, MCU chip comes with a 32-bit size. Microcontroller chip has outputs of 3.3V volts. The system has NO channels for DMA communication. This MCU Chip uses NO PWM channels to operate. In total, it has 32 pins. The CORTEX-M0 CPU family is embedded in the device, so it can handle a wide range of operations. It runs on a 25MHz clock.
