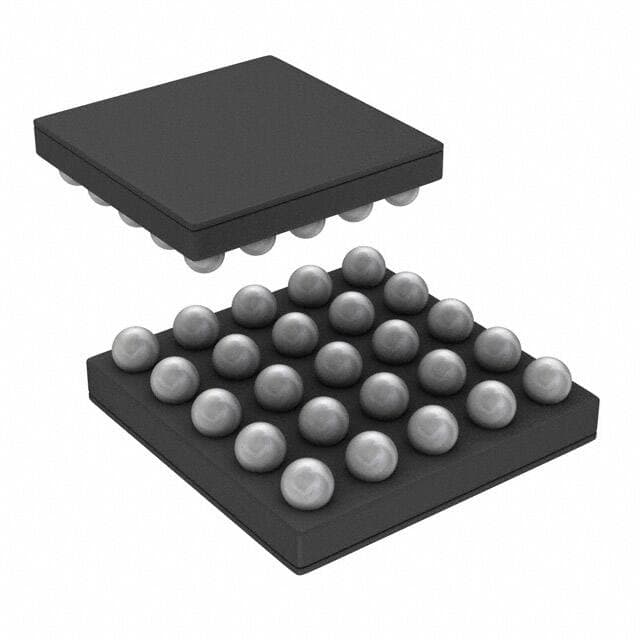

TI LP8731QYZRRQ1

Manufacturer No:

LP8731QYZRRQ1

Manufacturer:

Package:

25-WFBGA, DSBGA

Description:

Adjustable 0.5mm PMIC Automotive, AEC-Q100 Series LP8731 25 Pin 25-WFBGA, DSBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LP8731QYZRRQ1 information

TI LP8731QYZRRQ1 technical specifications, attributes, parameters and parts with similar specifications to TI LP8731QYZRRQ1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
25-WFBGA, DSBGA

Number of Pins
25

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
25

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Supply
2.8V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
LP8731

Number of Outputs
4

Output Voltage
3.3V

Voltage - Output 1
1.675V

Input Voltage-Nom
3.6V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Output Current
1.2A

Quiescent Current
60?A

Voltage - Output 2
1.675V

Topology
Step-Down (Buck) Synchronous (2), Linear (LDO) (2)

Min Input Voltage
2.8V

Control Mode
VOLTAGE-MODE

Frequency - Switching
2.1MHz

Max Input Voltage
5.5V

Control Technique
PULSE WIDTH MODULATION

Voltage - Output 3
3.3V

Power Supply Rejection Ratio (PSRR)
45dB

w/Sequencer
No

Voltage/Current - Output 1
0.8875V~1.675V 1.2A

Voltage/Current - Output 2
0.8875V~1.675V 1.2A

Voltage/Current - Output 3
0.8V~3.3V 300mA

Height
675?m

Length
3mm

Width
2.8mm

Thickness
675?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI LP8731QYZRRQ1.

LP8731QYZRRQ1 Overview

25-WFBGA, DSBGA packaging is voltage regulators' for voltage regulators' transportation.The package Tape & Reel (TR) is ready to be shipped out.Voltage regulator supports up to 4 outputs in total.The operating temperature should be set to -40°C~125°C to avoid mal-function.Using search LP8731 will help you find more pin-to-pin solutions.In the switching regulator, you can find 25 terminals that are connected to the board.It has 25-shaped pins.This regulator voltage can be used in a wide range of applications due to its 3.3V output voltage.A voltage of 2.8V is required for this regulator.voltage regulators of this type can use voltages up to 5.5V.Adjustable output regulator controller.1.2A should be the current output from the DC DC Switching Regulator.During quiescent mode, the regulator controller displays a quiescent current of 60?A.A Surface Mount-slot is provided for mounting the board on a PCB or other board that requires mounting.It uses a voltage regulator 12v from Automotive, AEC-Q100.

LP8731QYZRRQ1 Features

4 outputs
Operating Temperature: -40°C~125°C
Quiescent Current: 60?A

LP8731QYZRRQ1 Applications

There are a lot of Texas Instruments LP8731QYZRRQ1 Linear Regulator Controllers applications.

Desknotes and Notebooks
Switching Power Supplies
Graphic Cards
High Efficiency Linear Regulators
Consumer Electronics
Low noise SMPS post regulator
Mother Board I/O Power Supply
Error Amplifiers
TVs
Voltage References
