TI LP5904TMX-2.85/NOPB

Manufacturer No:

LP5904TMX-2.85/NOPB

Manufacturer:

Package:

4-WFBGA, DSBGA

Description:

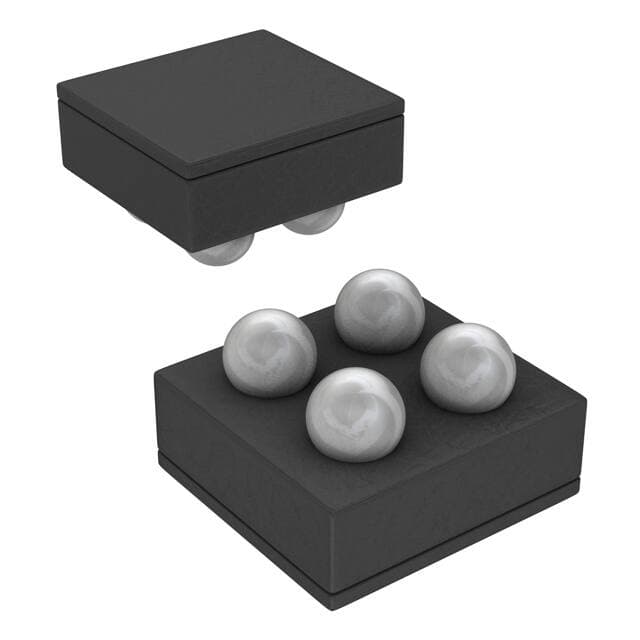

Enable Fixed LP5904 PMIC 4 4-WFBGA, DSBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LP5904TMX-2.85/NOPB information

TI LP5904TMX-2.85/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LP5904TMX-2.85/NOPB.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
4-WFBGA, DSBGA

Number of Pins
4

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Base Part Number
LP5904

Pin Count
4

Current - Supply (Max)
230?A

Voltage - Input (Max)
5.5V

Output Voltage
2.85V

Output Type
Fixed

Output Configuration
Positive

Quiescent Current
20?A

Control Features
Enable

Accuracy
2 %

Output Voltage 1
2.85V

Number of Regulators
1

Min Input Voltage
2.2V

Protection Features
Over Temperature, Short Circuit

Current - Quiescent (Iq)
50?A

Voltage Dropout (Max)
0.15V @ 200mA

PSRR
88dB ~ 30dB (100Hz ~ 2Mhz)

Dropout Voltage
95mV

Height
675?m

Length
0m

Width
0m

Thickness
420?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI LP5904TMX-2.85/NOPB.

LP5904TMX-2.85/NOPB Overview

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 4-WFBGA, DSBGA case is used for packaging. As you can see, the IC chip has 4 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~85°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. This chip has a total of 4 pins, which are arranged in a rectangular shape. The dropout voltage of the regulator IC is 10 volts. 4 pins are on the chip. For your information, this regulator's basic part number is LP5904. To meet operation requirements, the voltage regulator IC has a maximum output current of 200mA. It operates in the 20?A Quiescent Current state.

LP5904TMX-2.85/NOPB Features

95mV dropout voltage

LP5904TMX-2.85/NOPB Applications

There are a lot of Texas Instruments
LP5904TMX-2.85/NOPB Linear Voltage Regulators applications.

Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
