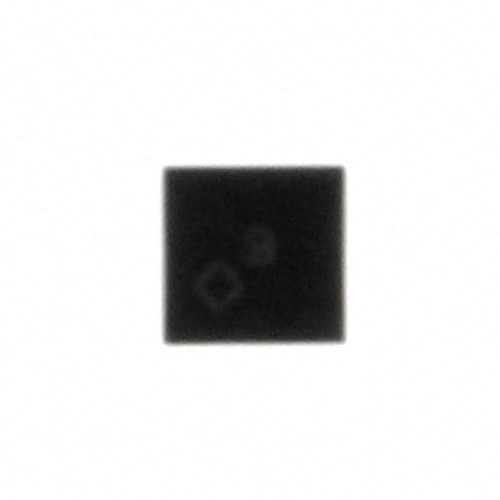

TI LP5900TL-3.3

Manufacturer No:

LP5900TL-3.3

Manufacturer:

Package:

Description:

Fixed 0.5mm PMIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LP5900TL-3.3 information

TI LP5900TL-3.3 technical specifications, attributes, parameters and parts with similar specifications to TI LP5900TL-3.3.

Type
Parameter

Mount
Surface Mount

Number of Pins
4

Packaging
Tape & Reel (TR)

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Terminal Pitch
0.5mm

Number of Outputs
1

Output Type
Fixed

Max Output Current
150mA

Polarity
Positive

Current - Output
150mA

Quiescent Current
50μA

Accuracy
2 %

Voltage - Output
3.3V

Output Voltage 1
3.3V

Max Input Voltage
5.5V

Dropout Voltage
80mV

Dropout Voltage1-Nom
0.08V

Voltage Tolerance-Max
2%

Input Voltage Absolute-Max
6V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI LP5900TL-3.3.

LP5900TL-3.3 Description

The LP5900 is an LDO capable of supplying 150-mA output current. Designed to meet the requirements of RF and analog circuits, the LP5900 device provides low noise, high PSRR, low quiescent current, and low line transient response figures. Using new innovative design techniques the LP5900 offers class-leading device noise performance without a noise bypass capacitor.

The device is designed to work with 0.47-μF input and output ceramic capacitors (no bypass capacitor required).

The device is available in a DSBGA (YZR) package and a WSON package; the device is also available in an extremely thin DSBGA (YPF) package. For all

voltage and package options available today, see the Package Option Addendum (POA) at the end of this data sheet. Contact your local TI Sales office for any other fixed output voltages from 1.5 V to 4.5 V in 25-mV steps and all other package options.

LP5900TL-3.3 Features

Input Voltage Range, 2.5 V to 5.5 V

Output Voltage Range, 1.5 V to 4.5 V

Stable with 0.47-μF Ceramic Input and Output Capacitors

No Noise Bypass Capacitor Required

Logic Controlled Enable

Thermal-Overload and Short-Circuit Protection

?40°C to 125°C Junction Temperature Range for Operation

Output Current, 150 mA

Low Output Voltage Noise, 6.5 μVRMS

PSRR, 75 dB at 1 kHz

Output Voltage Tolerance, ±2%

Virtually Zero IQ (Disabled), < 1 μA

Very Low IQ (Enabled), 25 μA

Start-up Time, 150 μs

Low Dropout, 80 mV Typ

LP5900TL-3.3 Applications

Cellular Phones

PDA Handsets

Wireless LAN Devices
