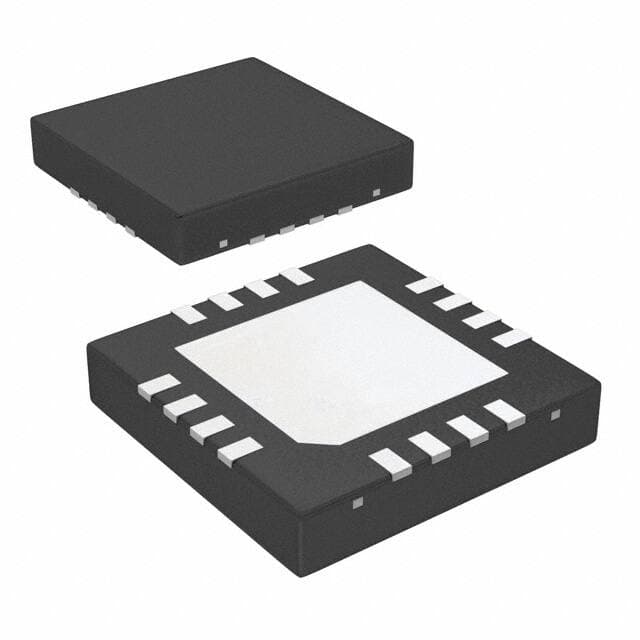

TI LP5550SQX

Manufacturer No:

LP5550SQX

Manufacturer:

Package:

16-WFQFN Exposed Pad

Description:

16 Terminations 3V~5.5V 16 Pin LP5550 Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LP5550SQX information

TI LP5550SQX technical specifications, attributes, parameters and parts with similar specifications to TI LP5550SQX.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-WFQFN Exposed Pad

Number of Pins
16

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
PowerWise®

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Applications
Handheld/Mobile Devices

Additional Feature
AUTOMATIC PWM/PFM MODE AVAILABLE

Subcategory
Power Management Circuits

Technology
NMOS

Voltage - Supply
3V~5.5V

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
LP5550

Output Voltage
3.3V

Input Voltage-Nom
3.6V

Power Supplies
3.3/5V

Number of Channels
4

Analog IC - Other Type
SWITCHING REGULATOR

Operating Supply Current
140?A

Output Current
250mA

Input Voltage (Min)
3V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

Dropout Voltage
260mV

Switcher Configuration
BUCK

Switching Frequency
1MHz

Height Seated (Max)
0.8mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI LP5550SQX.

Datasheets:

texasinstruments-lp5550sqnopb-datasheets-1163.pdf

LP5550SQX Overview

It is acceptable to ship in the direction of Tape & Reel (TR) .In order to facilitate transportation, it is packaged the power management in 16-WFQFN Exposed Pad .For ease of adaptability, Surface Mount is an universal mounting method.Applications targeting this power management include Handheld/Mobile Devices and others.Ideally, the operating temperature of the power management ic should be set at -40°C~85°C in order to prevent malfunction.The power management runs on 3V~5.5V voltage.Get more power ic's pin-to-pin solutions for your special needs by searching LP5550 .The power management is equipped with 16 terminals.It has received high praise as a SWITCHING REGULATOR analog IC.Power managment ics have 16 pins.It is equipped with a Surface Mount for mounting on a PCB or other board.This power ic has 16 pins in its pinout.There is 140?A voltage applied to this power management ic.This item is ics supply of the Power Management Circuits series.For the output quality to be maintained, 4 channels work together.For the power management chip to run, 3.3/5V power supplies are sufficient.PowerWise® can be used to search for similar manage icss.There is a voltage output of 3.3V .250mA should be the current output of the ic power supply.With this integrated power supplies, it is possible to find AUTOMATIC PWM/PFM MODE AVAILABLE as well.

LP5550SQX Features

Mainly used in Handheld/Mobile Devices applications
Operating temperature: -40°C~85°C
SWITCHING REGULATOR analog IC
AUTOMATIC PWM/PFM MODE AVAILABLE

LP5550SQX Applications

There are a lot of Texas Instruments
LP5550SQXPower Management applications.

Portable Navigation Devices
Portable Media Players
Portable Systems
Hand-Held Systems
Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
Motherboard
Standard notebook PC
