Manufacturer No:

LP3907TLX-JJCP/NOPB

Manufacturer:

TI

Package:

25-WFBGA

Description:

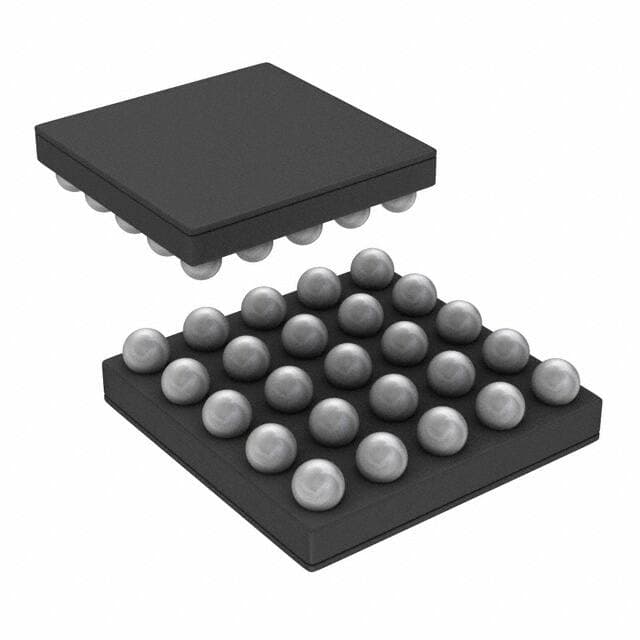

0.5mm PMIC LP3907 25 Pin 25-WFBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LP3907TLX-JJCP/NOPB information

TI LP3907TLX-JJCP/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LP3907TLX-JJCP/NOPB.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 25-WFBGA
  • Number of Pins
  • 25
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e1
  • Pbfree Code
  • no
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 25
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • Additional Feature
  • PFM TECHNIQUE ALSO USED
  • Subcategory
  • Switching Regulator or Controllers
  • Voltage - Supply
  • 2.8V~5.5V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Terminal Pitch
  • 0.5mm
  • Base Part Number
  • LP3907
  • Number of Outputs
  • 4
  • Voltage - Output 1
  • 1.2V
  • Analog IC - Other Type
  • DUAL SWITCHING CONTROLLER
  • Quiescent Current
  • 30?A
  • Voltage - Output 2
  • 1.8V
  • Input Voltage (Min)
  • 2.8V
  • Topology
  • Step-Down (Buck) Synchronous (2), Linear (LDO) (2)
  • Control Mode
  • VOLTAGE-MODE
  • Frequency - Switching
  • 2.1MHz
  • Input Voltage (Max)
  • 5.5V
  • Control Technique
  • PULSE WIDTH MODULATION
  • Current - Output 1
  • 1A
  • Voltage - Output 3
  • 1.2V
  • Current - Output 2
  • 600mA
  • w/Sequencer
  • Yes
  • Voltage/Current - Output 1
  • 1.2V 1A
  • Current - Output 3
  • 300mA
  • Voltage/Current - Output 2
  • 1.8V 600mA
  • Voltage/Current - Output 3
  • 1.2V 300mA
  • w/LED Driver
  • No
  • Length
  • 2.5mm
  • Height Seated (Max)
  • 0.675mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for TI LP3907TLX-JJCP/NOPB.

PCN Assembly/Origin:

LP3907TLX-JJCP/NOPB Description


The LP3907TLX-JJCP/NOPB is a multi-function, programmable power management unit (PMU) optimized for low-power FPGAs, microprocessors, and DSPs. This LP3907TLX-JJCP/NOPB integrates two highly efficient 1-A, 600-mA step-down DC-DC converters with dynamic voltage scaling (DVS), two 300-mA linear regulators, and a 400-kHz I2C interface to allow a host controller access to the internal control registers of the device. The LP3907TLX-JJCP/NOPB additionally features programmable power-on sequencing.



LP3907TLX-JJCP/NOPB Features


Input Voltage Range: 2.8 V to 5.5 V

Compatible with Advanced Applications Processors and FPGAs

2 LDOs for Powering Internal Processor Functions and I/Os

High-Speed Serial Interface for Independent Control of Device Functions and Settings

Precision Internal Reference

Thermal Overload Protection

Current Overload Protection

Software Programmable Regulators

External Power-On-Reset Function for Buck1 and Buck2 (Power Good with Delay Function)

Undervoltage Lockout Detector to Monitor Input Supply Voltage



LP3907TLX-JJCP/NOPB Applications


FPGA, DSP Core Power

Applications Processors

Peripheral I/O Power

Hearing Aids

Electronic Measurement Units

Equipment Run-Off of Battery Backup
