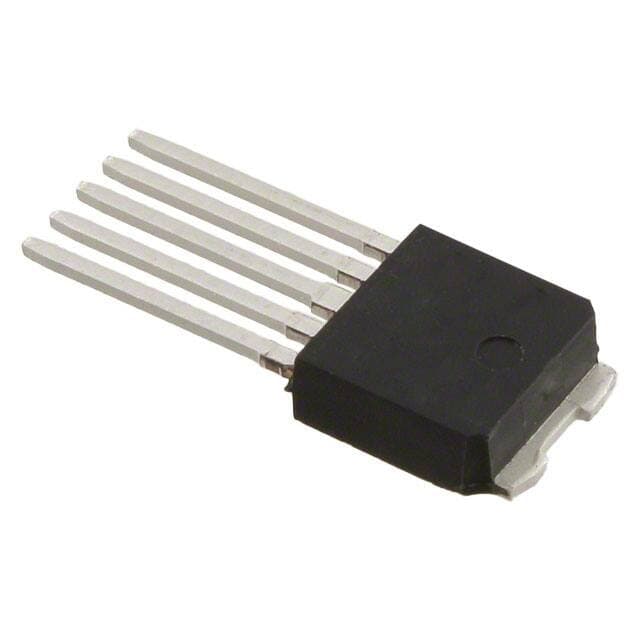

ST LNBP9LIT

Manufacturer No:

LNBP9LIT

Manufacturer:

Package:

IPPAK-5

Description:

Converter, Analog and Digital Satellite STB Receivers/SatTV 13.25V 18V NOT SPECIFIED Cel SINGLE Specialized Voltage Regulator 0°C~85°C LNBP9 5 Pins 5 Terminations IPPAK-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LNBP9LIT information

ST LNBP9LIT technical specifications, attributes, parameters and parts with similar specifications to ST LNBP9LIT.

Type
Parameter

Mount
Surface Mount, Through Hole

Mounting Type
Surface Mount

Package / Case
IPPAK-5

Number of Pins
5

Operating Temperature
0°C~85°C

Packaging
Tube

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Applications
Converter, Analog and Digital Satellite STB Receivers/SatTV

Subcategory
Power Management Circuits

Technology
BIPOLAR

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LNBP9

Pin Count
5

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
19V

Output Type
Fixed

Input Voltage-Nom
16V

Polarity
Positive

Analog IC - Other Type
SWITCHING REGULATOR

Voltage - Input
15V~25V

Nominal Supply Current
3.7mA

Output Current
500mA

Voltage - Output
13.25V 18V

Min Input Voltage
15V

Max Input Voltage
25V

Supply Current-Max (Isup)
6.3mA

Switching Frequency-Max
24kHz

Height Seated (Max)
7.4mm

Width
2.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST LNBP9LIT.

Datasheets:

stmicroelectronics-lnbp11lpur-datasheets-8758.pdf

LNBP9LIT Overview

The device supports a total of 1outputs. The product is packaged in IPPAK-5to facilitate transportation. The product is currently available in Tubepackages. In general, this regulator outputs a voltage of 13.25V 18V. Surface Mount Universal mount allows for easy adaptation. In addition to [0], this device targets other applications as well. In order to prevent malfunctions, the operating temperature should be set to 0°C~85°C. A voltage of 15V~25Vis the input voltage for this regulator. The part contains 5terminals. As a SWITCHING REGULATOR regulator, the part has received lots of praise. This component has a pinout starting from 5pins. For more pin-to-pin solutions, please search [0]. A Surface Mount, Through Holeis provided for mounting on PCBs or other boards. 5pins are present on the device. The device and other Power Management Circuitsare crucial to the industry. It should be showing 500mAas the current output from the device. The input voltage of this regulator must be higher than 15V. At its maximum, it will produce current [0].
