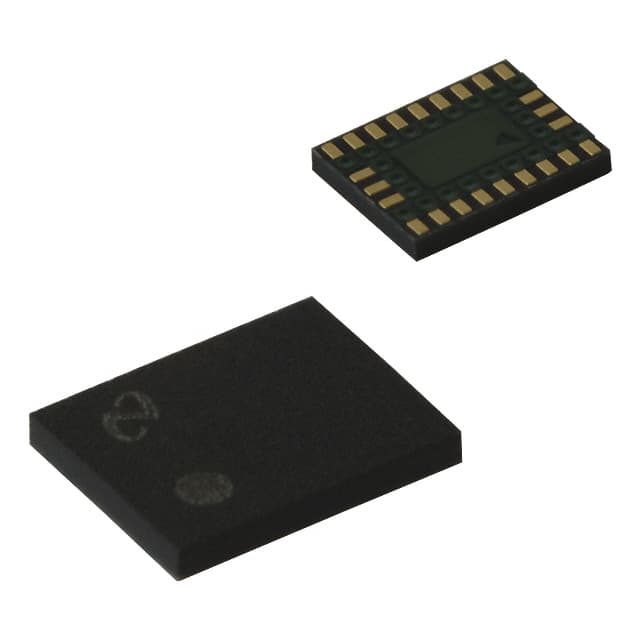

Rochester LMX2370SLBX

Manufacturer No:

LMX2370SLBX

Manufacturer:

Rochester

Package:

24-TFQFN, CSP

Description:

3V PLL Frequency Synthesizer 2.5GHz 1.2GHz Clock Generators PLLatinum? Series 24 Pins 24-TFQFN, CSP 24 Terminals Surface Mount 2.7V~5.5V Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LMX2370SLBX information

Rochester LMX2370SLBX technical specifications, attributes, parameters and parts with similar specifications to Rochester LMX2370SLBX.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
24-TFQFN, CSP

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
PLLatinum?

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
24

Type
PLL Frequency Synthesizer

Terminal Finish
TIN

Voltage - Supply
2.7V~5.5V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.5mm

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
40

Output
CMOS

Pin Count
24

Qualification Status
COMMERCIAL

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2.7V

Number of Circuits
1

Frequency (Max)
2.5GHz 1.2GHz

Input
CMOS, TTL

Ratio - Input:Output
3:1

PLL
Yes with Bypass

Differential - Input:Output
Yes/No

Length
4.5mm

Width
3.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester LMX2370SLBX.

Datasheets:

rochesterelectronicsllc-lmv931qdckrq1-datasheets-2549.pdf

LMX2370SLBX Overview

Tape & Reel (TR)-method packaging is used for clock ICs. The 24-TFQFN, CSP package contains this clock generator. This clock generator ic can sustain a maximum temperature of 260 during reflowing. It contains 24 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 3V. The input of this clock generator is designed to be CMOS, TTL. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 2.5GHz 1.2GHz Max with this clock-based frequency generator. Thanks to the Surface Mount, this electric component can be conveniently installed on the panel. This clock generator would require a maximum supply voltage of 5.5V. For safety reasons, this frequency synthesizer should have a voltage supply above 2.7V. As far as the supply voltage is concerned, clock PLL can be used with 2.7V~5.5V. Based on the test statistics, an ambient temperature of -40°C~85°C should be set. As the name suggests, this is a clock generator that is compatible with CMOS logic levels. This electronic component is usually classified as a PLL Frequency Synthesizer component. The clock-generating IC is a 24-bit device designed specifically for microprocessors. The PLLatinum? series includes this electronic part.
