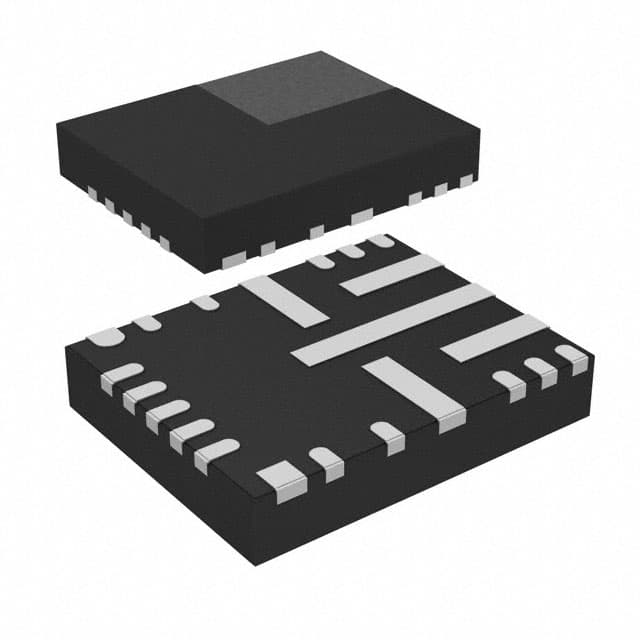

TI LMS36355QRNLRQ1

Manufacturer No:

LMS36355QRNLRQ1

Manufacturer:

Package:

22-VFQFN Exposed Pad

Description:

22 Terminals 3.9V 22-Pin LMS36355 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 250kHz~500kHz Tape & Reel (TR) 3.5A 22-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LMS36355QRNLRQ1 information

TI LMS36355QRNLRQ1 technical specifications, attributes, parameters and parts with similar specifications to TI LMS36355QRNLRQ1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 day ago)

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount, Wettable Flank

Package / Case
22-VFQFN Exposed Pad

Surface Mount
YES

Number of Pins
22

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
22

Terminal Finish
Matte Tin (Sn)

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Base Part Number
LMS36355

Function
Step-Down

Number of Outputs
1

Voltage - Input (Max)
36V

Output Voltage
5V

Output Type
Fixed

Voltage - Input (Min)
3.9V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
3.5A

Voltage - Output (Min/Fixed)
5V

Topology
Buck

Control Mode
CURRENT-MODE

Frequency - Switching
250kHz~500kHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
No

Height
900μm

Length
5mm

Width
4mm

Thickness
850μm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI LMS36355QRNLRQ1.

LMS36355QRNLRQ1 Overview

This harley voltage regulator utilizes the Tape & Reel (TR) package for optimized performance. There are 22 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. This harley voltage regulator is available in the 22-VFQFN Exposed Pad package for the purpose of space saving. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Fixed output on its output pins. This voltage regulator 12v fits the Surface Mount, Wettable Flank mounting. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~125°C TA. The switching frequency of this DC-DC switching regulator reaches 250kHz~500kHz. This voltage regulator is able to operate with the minimal input voltage of 3.9V. DC DC switching regulator's output voltage (Min/Fixed) amounts to 5V. The output current of 3.5A makes dc to dc voltage regulator feature maximum design flexibility. Voltage regulator has an input voltage (Max) of 36V. The peak reflow temperature of this regulator amounts to 260 to be essentially indestructible. Voltage regulator is designed to provide a nominal input voltage of 13.5V to meet the operation requirements. This DC/DC regulator belongs to the LMS36355 family. The adjusting voltage regulator's output voltage is maintain at 5V. 22 pins are used for switching regulator operation. This regulator voltage, belonging to the Automotive, AEC-Q100 family, is a type of DC-DC switching regulator.
