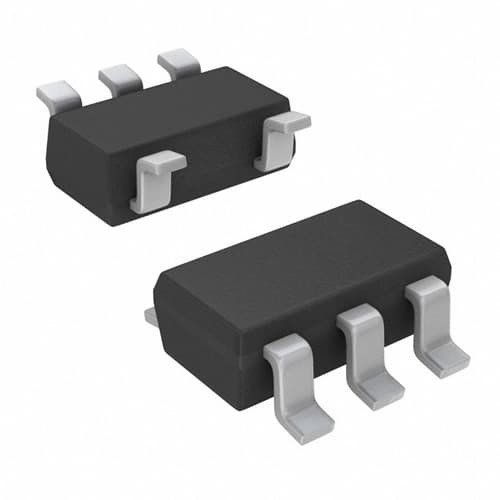

TI LMH6702MFX

Manufacturer No:

LMH6702MFX

Manufacturer:

Package:

SOT-23

Description:

1 Channels 15?A 45 dB Instrumentational OP Amps 6V 5 Pins SOT-23

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LMH6702MFX information

TI LMH6702MFX technical specifications, attributes, parameters and parts with similar specifications to TI LMH6702MFX.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23

Number of Pins
5

Packaging
Tape and Reel

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Pin Count
5

Operating Supply Voltage
6V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Nominal Supply Current
12.5mA

Current - Output
80mA

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
45 dB

Current - Input Bias
15?A

Input Offset Voltage (Vos)
4.5mV

Power Supply Rejection Ratio (PSRR)
47dB

Max Dual Supply Voltage
6V

Min Dual Supply Voltage
5V

Length
2.92mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI LMH6702MFX.

LMH6702MFX Overview

The linear amplifier is packaged in a SOT-23 case. This is a OPERATIONAL AMPLIFIER type op amp. Linear amplifier is delivered in a Tape and Reel case. The number of terminations approaches 5. Buffer amplifier has a total of 5 pins. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 5 pins. Regarding input offset voltage, op amp rates 4.5mV. The op amp ic has 1 channels on it. The temperature should not be lower than -40°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 85°C. The operating supply voltage of the buffer op amp is rated at 6V. You should conduct this electronic component under the dual supply voltage of 6V.
