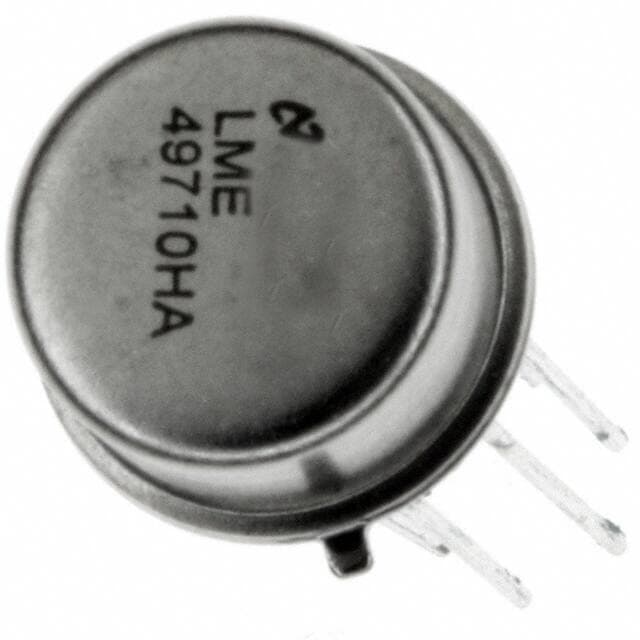

TI LME49710HA/NOPB
TI LME49710HA/NOPB

TI LME49710HA/NOPB

Manufacturer No:

LME49710HA/NOPB

Manufacturer:

TI

Package:

TO-205AA, TO-5-8 Metal Can

Description:

26mA per Channel 7nA 110 dB Instrumentational OP Amps 0.072μA 17V ±2.5V~17V LME49710 8 Pins TO-205AA, TO-5-8 Metal Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LME49710HA/NOPB information

TI LME49710HA/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LME49710HA/NOPB.

  • Type
  • Parameter
  • Contact Plating
  • Copper, Silver, Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-205AA, TO-5-8 Metal Can
  • Number of Pins
  • 8
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • ECCN Code
  • EAR99
  • Subcategory
  • Operational Amplifier
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • WIRE
  • Number of Functions
  • 1
  • Supply Voltage
  • 15V
  • Base Part Number
  • LME49710
  • Pin Count
  • 8
  • Operating Supply Voltage
  • 17V
  • Number of Elements
  • 1
  • Operating Supply Current
  • 4.8mA
  • Nominal Supply Current
  • 4.8mA
  • Output Current
  • 26mA
  • Quiescent Current
  • 4.8mA
  • Architecture
  • VOLTAGE-FEEDBACK
  • Amplifier Type
  • Audio
  • Common Mode Rejection Ratio
  • 110 dB
  • Current - Input Bias
  • 7nA
  • Voltage - Supply, Single/Dual (±)
  • ±2.5V~17V
  • Output Current per Channel
  • 26mA
  • Supply Type
  • Dual
  • Input Offset Voltage (Vos)
  • 50μV
  • Gain Bandwidth Product
  • 55MHz
  • Neg Supply Voltage-Nom (Vsup)
  • -15V
  • Unity Gain BW-Nom
  • 55000 kHz
  • Voltage Gain
  • 140dB
  • Average Bias Current-Max (IIB)
  • 0.072μA
  • Power Supply Rejection Ratio (PSRR)
  • 110dB
  • Low-Offset
  • YES
  • Frequency Compensation
  • YES
  • Low-Bias
  • NO
  • Micropower
  • NO
  • Bias Current-Max (IIB) @25C
  • 0.072μA
  • Programmable Power
  • NO
  • Dual Supply Voltage
  • 15V
  • Wideband
  • NO
  • Load Impedance
  • 2kOhm

Download datasheets and manufacturer documentation for TI LME49710HA/NOPB.

Datasheets:

LME49710HA/NOPB Overview


Op amp is packaged in TO-205AA, TO-5-8 Metal Can case. Op amps are Audio types of amplifier on the chip. Instrumentation amplifier is delivered in a Tray case. The number of terminations approaches 8. Linear amplifier has a total of 8 pins. Please take in mind that op amp should be run at 15V. Instrumentation amplifier is a part of Operational Amplifier. Linear amplifier includes 8 pins. Regarding input offset voltage, buffer amplifier rates 50μV voltage. Through Hole is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~85°C. Operational amplifier can operate supply current at 4.8mA. The voltage gain should stay at 140dB. Op amp has total of 1 elements. The operating supply voltage of instrumentation amplifier is rated 17V voltage. Linear amplifier has a quiescent current of 4.8mA.
